Description

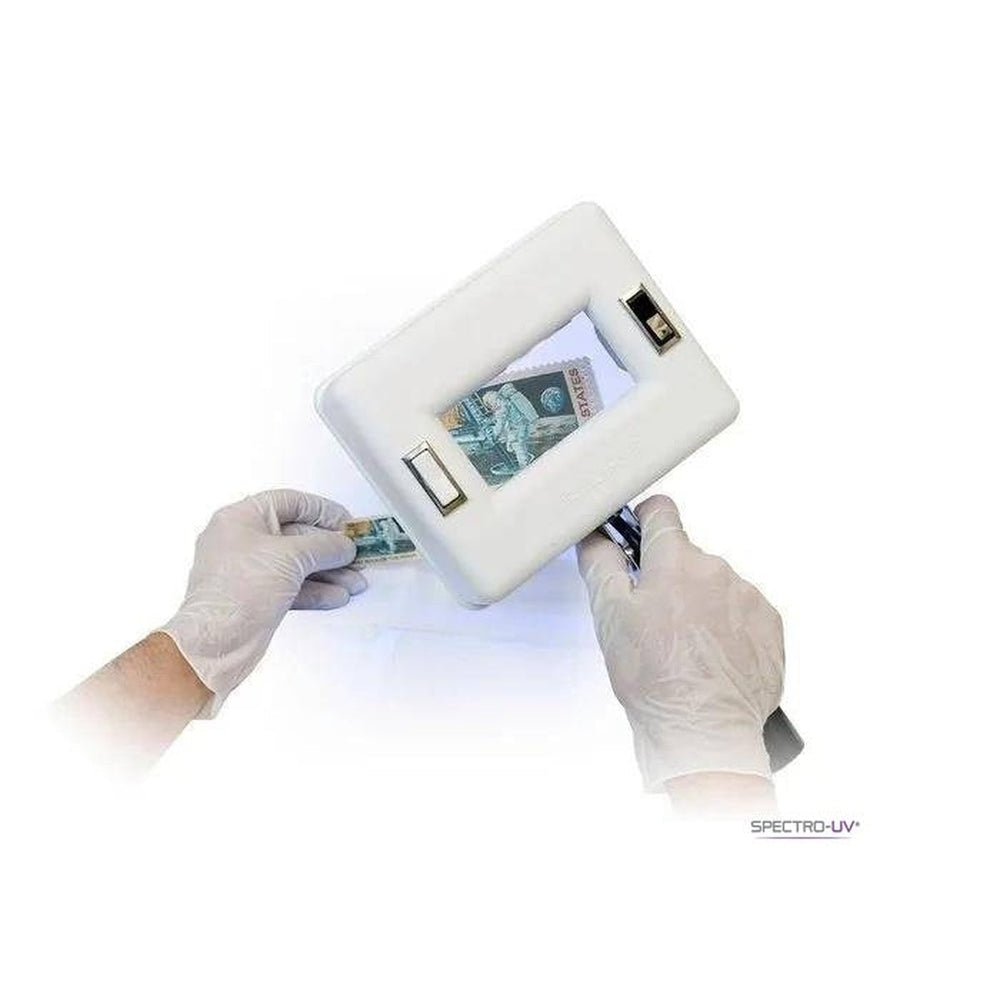

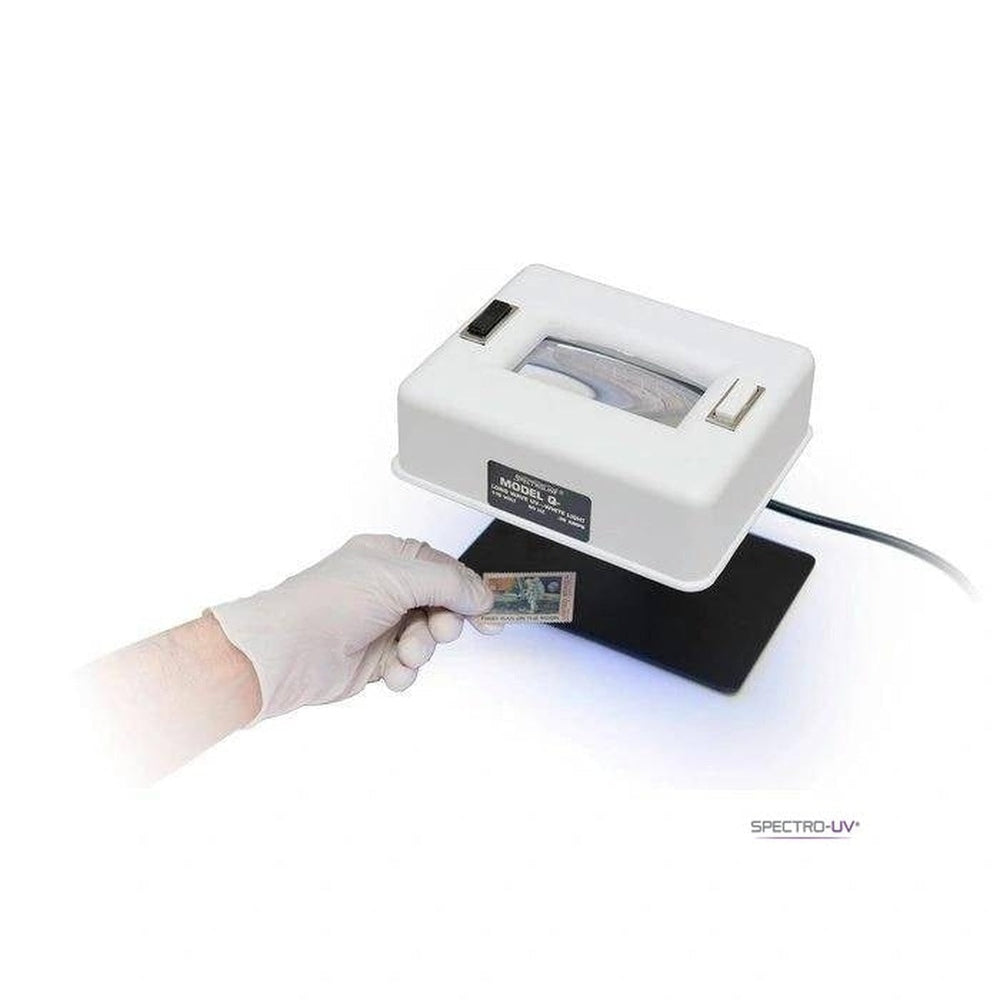

Spectro-UV’s QZ Series Ultraviolet (UV-A) Blacklight 365nm Magnifier Woods Exam Lamps have been designed for maximum versatility and the widest range of applications. They feature impact-resistant Polycarbonate housings enclosing a specular aluminum reflector that ensures maximum UV Irradiance. All models have a built-in magnifier lens to allow you to observe even minute traces of fluorescence. A rugged phenolic handle is attached to the housing by a friction lock swivel joint for superior comfort and flexibility. Lamps are equipped with heavy duty power cords with integrated strain relief ensuring added durability.

The QZ Series offers multiple models with various combinations of long wave Ultraviolet (UV-A) Blacklight, and white light, giving you the ability to select a unit that’s ideal for your specific application. You can choose a QZ Series lamp equipped with either two or four long wave Ultraviolet (UV-A) Blacklight 365nm tubes, with or without white light depending on your intensity requirements. The 2 x 4” (5 x 10 cm) high resolution magnifier lens adds another dimension to this multi-purpose line of lamps. Optically ground and polished, the lens provides three power magnification at an 8 inch (20 cm) focal length.

Ultraviolet (UV-A) Blacklight 365nm Applications

• Dermatology
• Cosmetology
• Ophthalmology
• Lice Detection
• Forensic Investigation
• Non-Destructive Examination (NDE)
• Non Destructive Testing (NDT)
• Quality Control
• Criminology
• Crime Scene Investigation
• Minerology
• Fluorescent Marking
• Hydrocarbon Detection
• Detection of Repairs and retouching of Porcelain, China, Panting’s and Antiques
• Archaeology
• Philately
• Detection of Altered Documents

What’s included

Comes complete with one QZ-22B Q-Series Ultraviolet (UV-A) Blacklight Magnifier Woods Exam Lamp.

Key Features

• Typical Peak UV Intensity at 6”(15cm): 1400 µW/cm²
• Four 4 Watt Integrally Filtered UV-A Tubes
• Net Weight: 2 Lbs (0.9Kg)
• Built in magnifier lens ideal for visual magnification of trace amounts of fluorescence found during the fluorescence analysis process.
• Magnification lens capable of 3x magnification at 8” focal length.
• impact resistant polycarbonate housing and ultra-light weight ballast design for fatigue-free use.
Rugged Phenolic handle with a friction-lock swivel joint for comfort and flexibility
• Integrated Aluminum reflector maximizes irradiance.
• Short wave UV tubes is equipped with our unique LONGLIFE™ filter glass
• UL Listed
