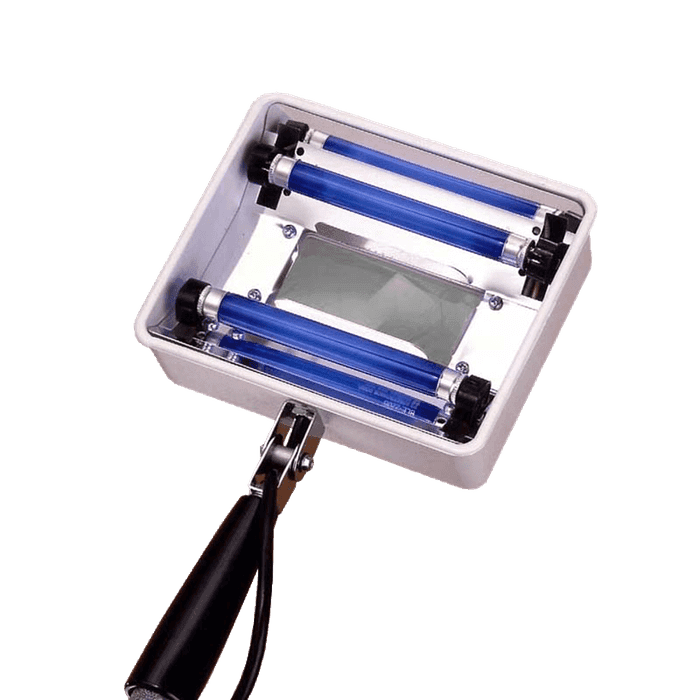

Q-Series Ultraviolet (UV) Skin Examination Magnifier Woods Lamp, 4 Watt, 2 Tube P/N Q-12

Regular price $415.00
Regular price Sale price $415.00
Lead Time: 5 Business Days

For tasks requiring visual magnification in skin examinations or fluorescence analysis, Spectro-UV presents the Q Series Ultraviolet (UV-A) Skin Examination Magnifier Woods Lamp, offering an attractive solution. Each Q Series Ultraviolet (UV-A) Skin Examination Magnifier Woods Lamp is specifically crafted to identify skin defects or trace amounts of fluorescence through its built-in magnifier lens. The Q-12 Ultraviolet (UV-A) Skin Examination Magnifier Woods Lamp is well-suited for a diverse range of specialized applications.

What makes the Q-12 Skin Exam Woods Lamp different from our other models?

  • Typical Peak UV Intensity at 6”(15cm): 700 µW/cm²
  • Two 4 Watt Integrally Filtered UV-A Tubes
  • Net Weight: 2 Lbs  (0.9Kg)

Similar model Q-22 Ultraviolet (UV-A) Magnifier Woods Exam Lamp
Similar model Q-22B Ultraviolet (UV-A) Magnifier Woods Exam Lamp
Similar model QZ-22 Ultraviolet (UV-A) Magnifier Woods Exam Lamp
Similar model QZ-22B Ultraviolet (UV-A) Magnifier Woods Exam Lamp

P/N
Brochure User manual

Description

Spectro-UV's Q-Series Ultraviolet (UV) Skin Examination Magnifier Woods Lamps are meticulously designed to offer maximum versatility across a wide range of applications. The Skin Examination lamps feature impact-resistant Polycarbonate housings that enclose a specular aluminum reflector, ensuring optimal UV Irradiance. All Woods Exam Lamps are equipped with a built-in magnifier lens, enabling the observation of even minute traces of fluorescence.

For enhanced comfort and flexibility, a rugged phenolic handle is attached to the skin examination lamp's housing through a friction lock swivel joint. The lamps also come with heavy-duty power cords featuring integrated strain relief for added durability.

The Q Series Woods Exam lamp provides multiple models with various combinations of long-wave Ultraviolet (UV-A) Blacklight at 365nm and White Light, allowing you to choose a unit tailored to your specific application. Options include models with two or four long-wave Ultraviolet (UV-A) Blacklight 365nm tubes, with or without white light, depending on your intensity requirements. The inclusion of a 2 x 4” (5 x 10 cm) high-resolution magnifier lens adds an extra dimension to this versatile line of lamps. Optically ground and polished, the lens provides three-power magnification at an 8-inch (20 cm) focal length.

UV Skin Exam Magnifier Woods Lamp Applications
  • Dermatology
  • Cosmetology
  • Ophthalmology
  • Lice Detection
  • Forensic Investigation
  • Non-Destructive Examination (NDE)
  • Non Destructive Testing (NDT)
  • Quality Control
  • Criminology
  • Crime Scene Investigation
  • Minerology
  • Fluorescent Marking
  • Hydrocarbon Detection
  • Detection of Repairs and retouching of Porcelain, China, Panting’s and Antiques
  • Archaeology

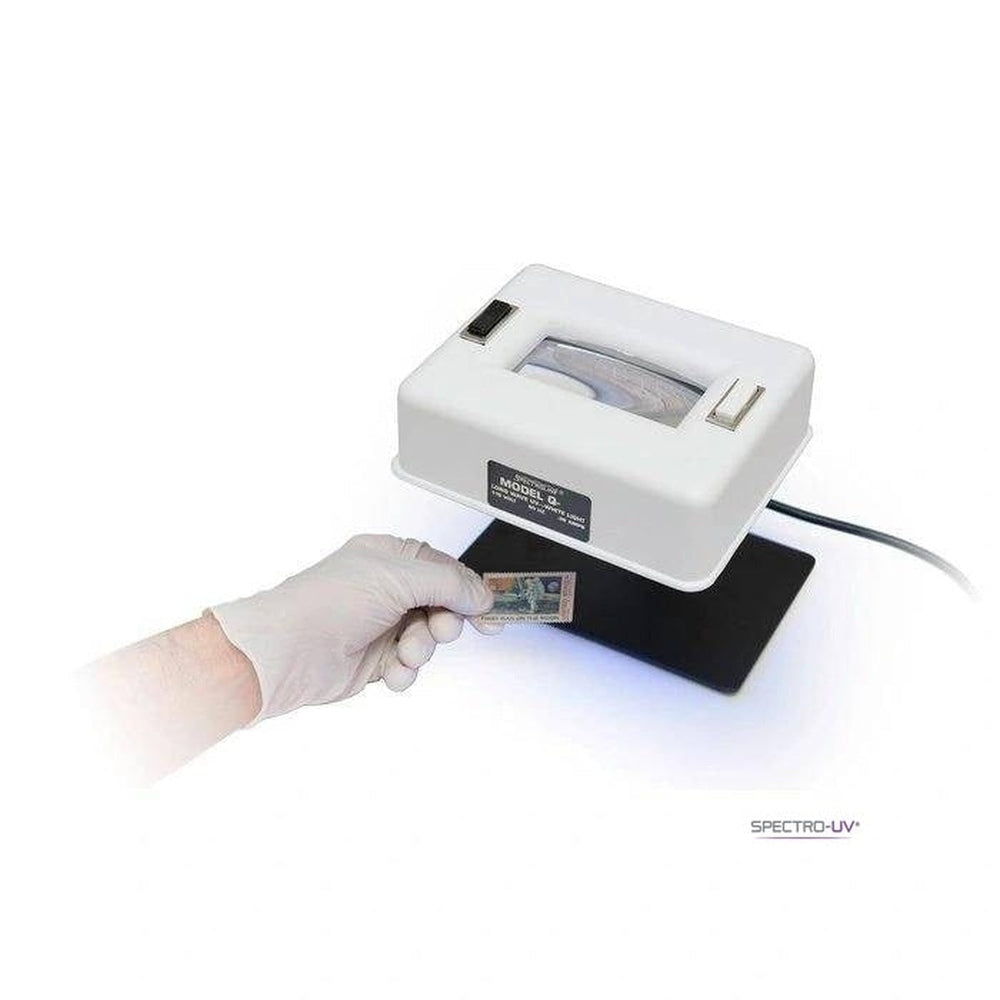

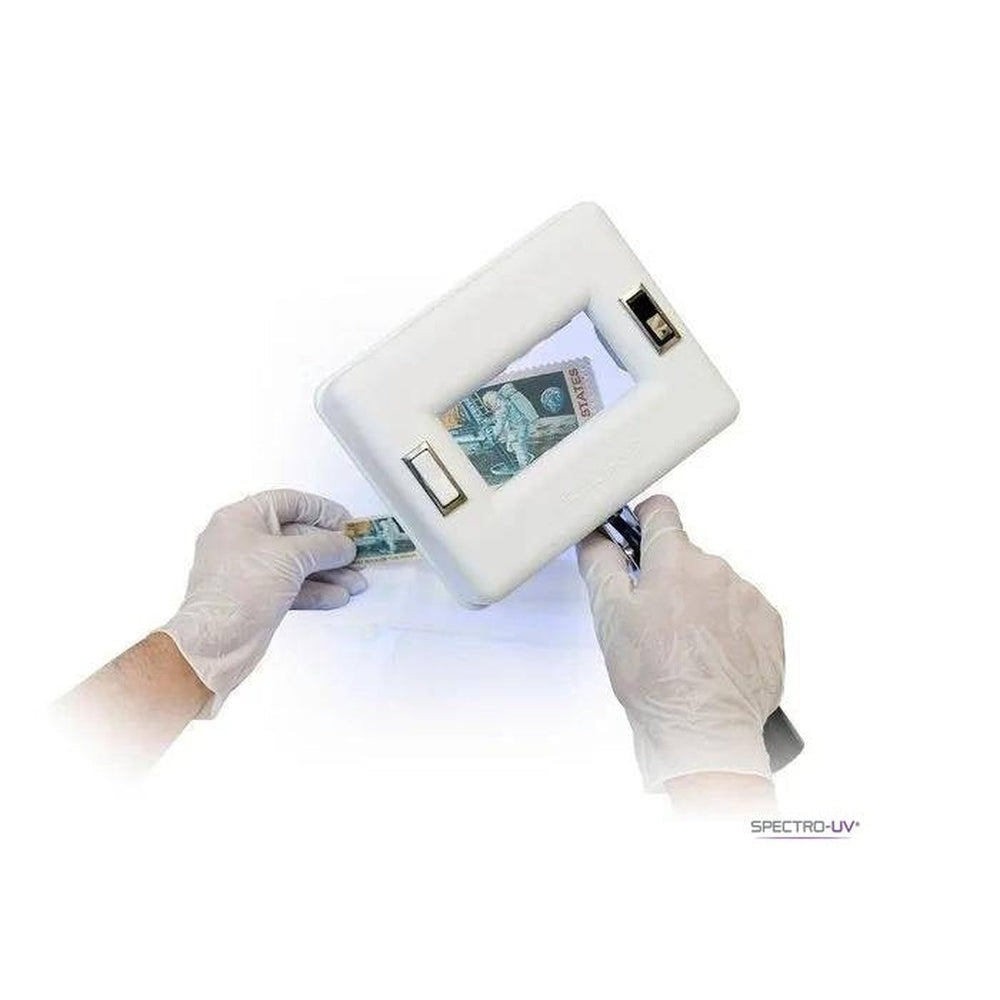

  • Philately
  • Detection of Altered Documents

What’s included

Comes complete with one Q-12 Q-Series Ultraviolet (UV) Skin Examination Magnifier Woods Lamp.

Key Features

  • Typical Peak UV Intensity at 6”(15cm): 700 µW/cm²
  • Skin Examination Lamp features two 4 Watt Integrally Filtered UV-A Tubes
  • Net Weight: 2 Lbs (0.9Kg)
  • Built in magnifier lens ideal for visual magnification of skin defects or trace amounts of fluorescence found during the fluorescence analysis process.
  • Skin Examination Lamp magnification lens capable of 3x magnification at 8” focal length.
  • Skin Examination lamp is made from impact resistant polycarbonate housing and ultra-light weight ballast design for fatigue-free use.
  • Rugged Phenolic handle with a friction-lock swivel joint for comfort and flexibility.
  • Skin Examination lamp has an Integrated Aluminum reflector maximizes irradiance.
  • Skin Examination Lamp is UL Listed
