The XS-555/L sensor measures at 555nm, making it a valuable add-on for AccuMAX™ Series Radiometer/Photometer models XR-1000, XRP-3000, and XRP-3000A.

The perfect accessory for the AccuMAX Series meter. Ideal for technicians
performing radiographic examinations. Meets ASTM E1742 standard.

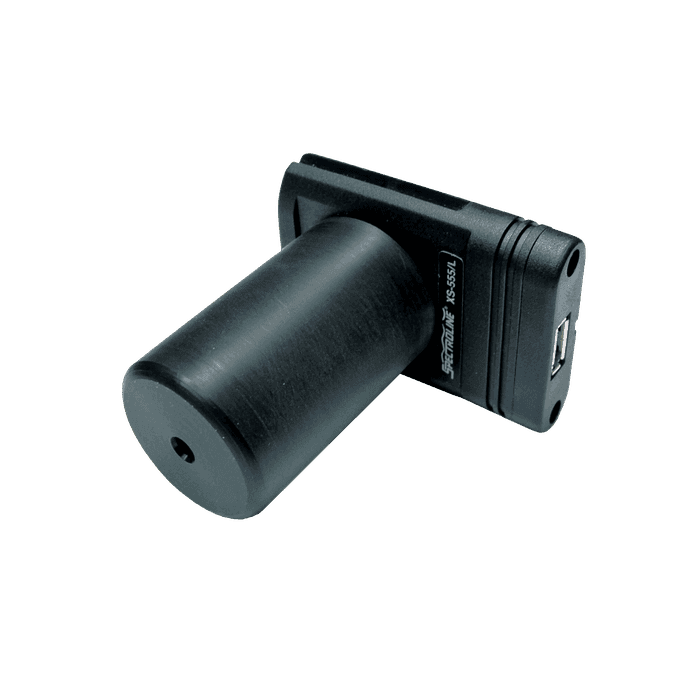

The AccuMAX XS-555/L luminance sensor detector measures the brightness
of a visible light source and, unlike many competitive units, allows the user the
choice of displaying the results in three distinct units of measure: candelas per
square meter (cd/m2), candelas per square foot (cd/ft2) and footlamberts (fL).

  • American Made Quality - Assembled in the USA with NIST-compliant ±5% accuracy, ensuring dependable measurements that meet the highest quality control standards.

Visible Sensor: 555 nm Luminance

Dimensions

  • Height 3.2 in (8.1 cm)
  • Length 3.0 in (7.6 cm)
  • Width 2.1 in (5.3 cm)
  • Weight 6.4 oz (181 g)

Luminance Range

  • 0 - 1,000,000 cd/m2
  • 0 - 90,000 cd/ft2
  • 0 - 285,000 fL

ASTM E1742 Compliant

Features:

  • Accurately measures visible luminance in multiple units: candelas per square meter (cd/m²), candelas per square foot (cd/ft²), or footlamberts (fL)
  • Wide luminance measurement range: 0-1,000,000 cd/m², 0-90,000 cd/ft², or 0-285,000 fL
  • Compact and lightweight design: 3.2" × 3.0" × 2.1" (8.1 × 7.6 × 5.3 cm), weighing only 6.4 oz (181 g)
  • Compatible with AccuMAX XR-1000 or XF-1000 digital readout units
  • Connects via standard USB cable or optional water-resistant sensor adapter cable (XCB-100)
  • Includes two sensor guards (one spare) to protect the sensor when used with computer radiography monitors
  • User-selectable measurement units through simple menu navigation
  • Multiple measurement modes: Normal, Zero, Hold, and Peak readings

Benefits:

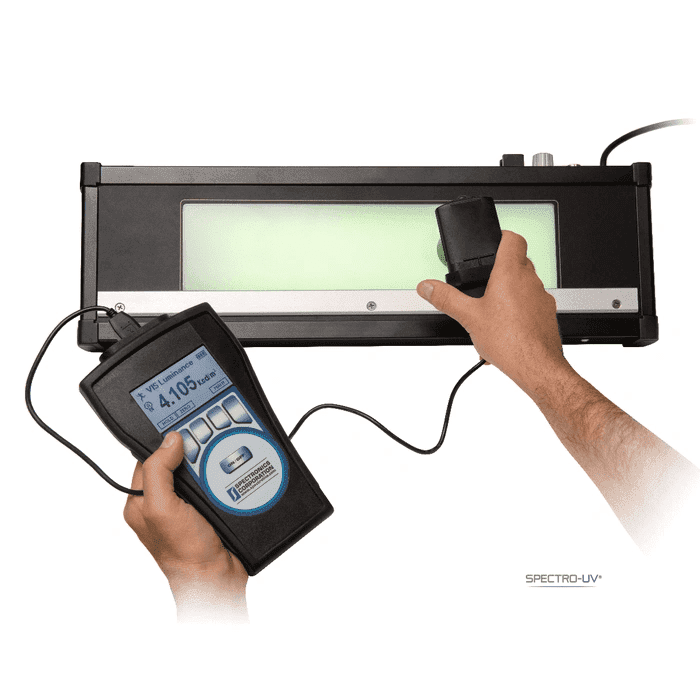

  • Ensures proper illumination of radiographic film viewing equipment including film illuminators, backlit panels, and transilluminators
  • Helps maintain compliance with radiographic viewing standards
  • Easy to operate with intuitive controls and menu system
  • Versatile measurement capabilities with customizable units
  • Portable and durable design for field use
  • Protected by manufacturer's limited warranty
  • Provides accurate and reliable measurements for quality assurance purposes
  • Sensor guard acts as a gentle buffer to protect both the sensor and sensitive equipment surfaces

ASTM E1742 Compliant

The XS-555/L sensor measures at 555nm, making it a valuable add-on for AccuMAX™ Series Radiometer/Photometer models XR-1000, XRP-3000, and XRP-3000A.


Made in USA
Models: XS-555L - AccuMAX™ Luminance Sensor Detector (555 nm)
