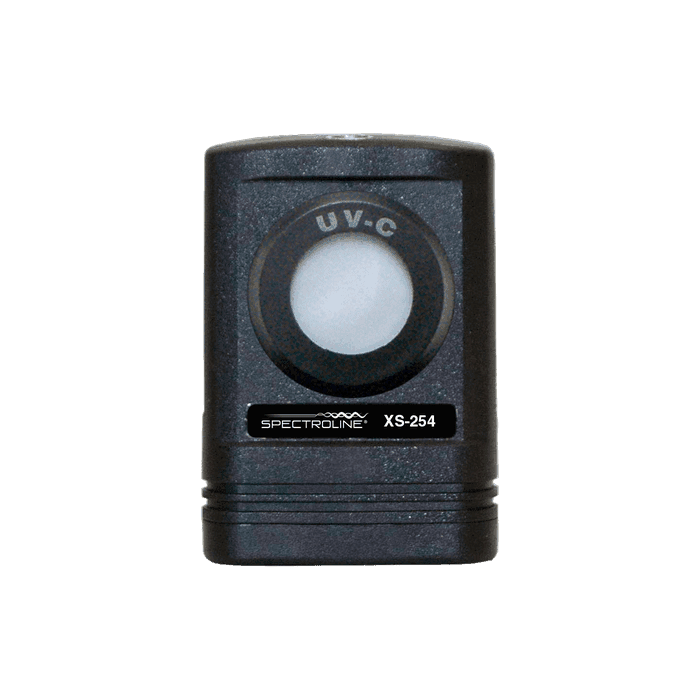

XS-254 AccuMAX™ Sensor Detector (254 nm to 555 nm Wavelength Available)
AccuMAX sensor detectors are designed to meet virtually any laboratory, life science or specialty UV application. These detectors feature water-resistant, sealed sensor housings, superior bandpass interference filters and excellent cosine response. Single-wavelength detectors are available in both standard range (XS-series), ideal for checking the intensity of fluorescent UV tubes and HID UV bulbs, and extended range (XTS-series), useful for measuring high-intensity light sources used in curing and photoactivation applications.
Also available are a single-wavelength visible illuminance detector (XS-555/I) and a luminance detector (XS-555/L). In addition, a dual-wavelength UV/VIS sensor detector (XDS-1000) is available to measure both UV-A and visible light, useful for industrial inspections. All sensors can easily be connected to the readout unit either directly or with a standard USB cable. A special 5 foot (1.5 m) USB cable with water resistant adapter (XCB-100) is available as an accessory.
DescriptionThe perfect accessory for the AccuMAX Series meter. Ideal for technicians performing radiographic examinations.
What’s includedXS-254 AccuMAX™ Sensor Detector
|Model||Sensor||Spectral Range||Range In Units|
|XS-254||UV-C||230 - 280nm||0 - 100 mW/cm2|
|XS-300||UV-B||280 - 320nm||0 - 100mW/CM2|
|XS-365||UV-A||320 - 420nm||0 - 100mW/cm2|
|XS-405||UV-V||395 - 415nm||0 - 100mW/cm2|
|XS-450||Bilirubin||420 - 480nm||0 - 100mW/cm2|
|XS-555/I||Visible illuminance||460 - 675nm||0 - 5,300 lux (0 - 500 fc)|
|XS-555/L||Visible luminance||555nm||0 - 1,000,000 cd/m² 0 - 90,000 cd/ft² 0 - 285,000 fL|
|XDS-1000||UV-A / Visible illuminance||460 - 675nm||0 - 5,300 lux (0 - 500 fc)|
