AccuMAX™ Radiometer / Photometer Kit
AccuMAX™ Radiometer / Photometer Kit
AccuMAX Radiometer / Photometer Kit
AccuMAX Radiometer / Photometer Kit
a picture of the united states flag shaped in the united states with a circle around the words assembled in the usa

XRP-3000

AccuMAX™ Radiometer / Photometer Kit
Sale price$1,777.00
Brochure User manual Product Comparison

The AccuMAX™ is a handheld digital radiometer/photometer used to measure the UV-A and visible light intensity of inspection lamps, verifying they meet the minimum output required for compliant fluorescent penetrant and magnetic particle inspection. NDT quality technicians and calibration labs use it to confirm lamp intensity against ASTM E3022 and ASTM E2297 before and during inspection work, the XRP-3000A is the ASTM-designed, dual-compliance version; the standard XRP-3000 measures the same ranges without the compliance certification.

  • This microprocessor-controlled readout system delivers unmatched precision for the most demanding NDT applications
  • American Made Quality - Assembled in the USA with NIST-compliant ±5% accuracy, ensuring dependable measurements that meet the highest quality control standards.
  • Measures both ultraviolet and visible light with exceptional accuracy
  • Compact, portable design with protective rubber housing
  • Compliant with ASTM specifications for industrial inspections
  • UV-A Sensor Range: 0–100 mW/cm²
  • Visible Light Sensor Range: 0–5,300 lux (0-500 fc)
  • 4-digit autoranging display with 128 x 64 pixel LCD
  • Sampling Rate: 7.5 Hz (single sensor), 15 Hz (dual sensor)
  • Overall Accuracy: Better than +5% with reference to NIST standards

Readout Unit (XR-1000)
Resolution: 4-digit autoranging display with backlight
Screen: 128 x 64-dot pixel chip on glass STN transmissive monochrome LCD
2.8 in (7.1 cm) diagonal
Sampling Rate: 7.5 Hz (Single Sensor)
15 Hz (Dual Sensor)
Read Update: 2 Hz
Overall Accuracy: Better than ±5% with reference to NIST standards
Temperature Coefficient: ±0.025%/°C (0 to 50°C)

Dual UV-A/Visible Sensor Detector (XDS-1000)

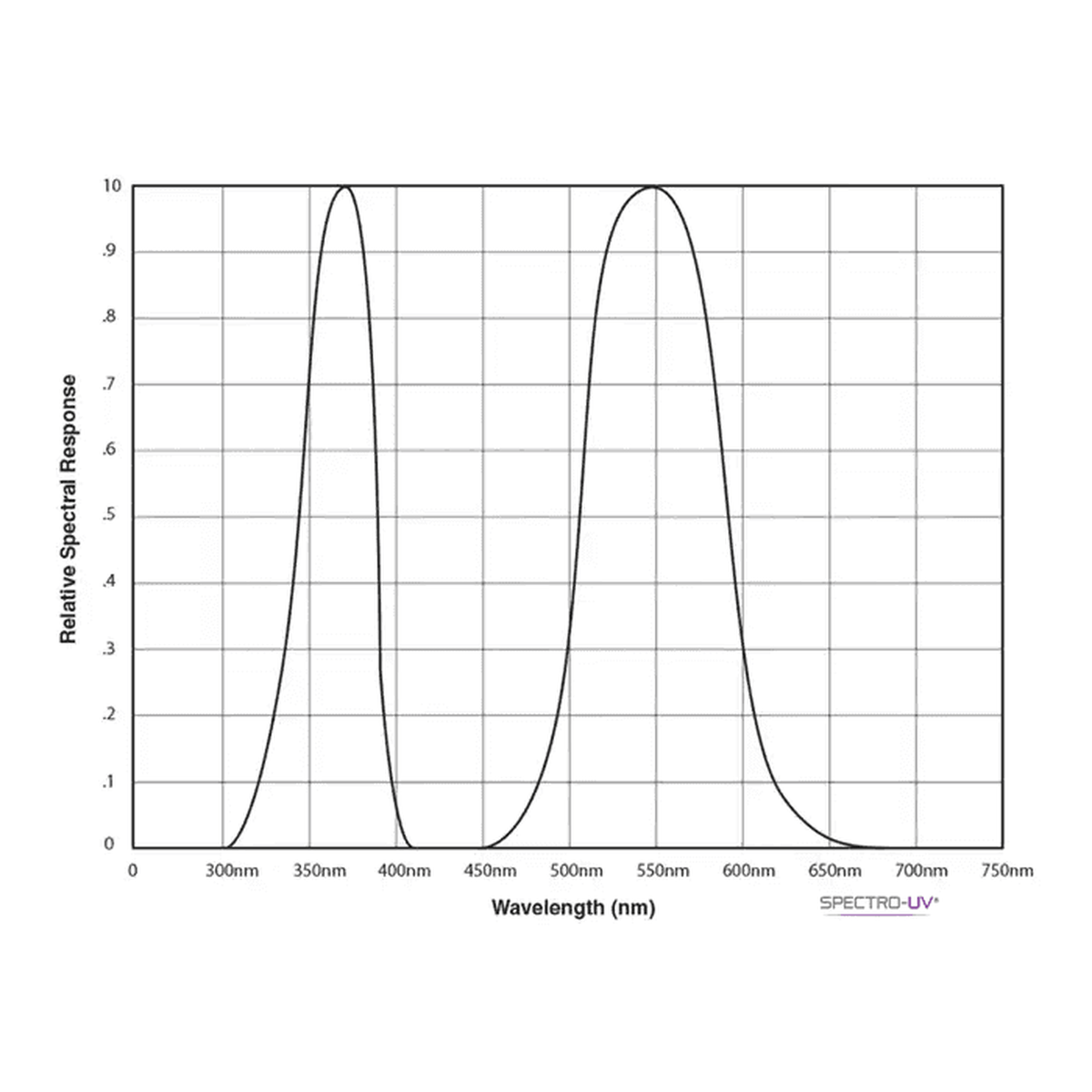

• UV-A Sensor: Measurement Range: 0-100 mW/cm2 Spectral Range: 320-420 nm
• Visible Sensor: Measurement Range: 0-5,300 lux (0-500 fc) Spectral Range: 460-675 nm
Power Requirements: Two nonrechargeable 9V alkaline battery cells are included as standard

Dimensions
Readout Unit
• Length 7.75 in (19.7 cm)
• Width 4.25 in (10.8 cm)
• Thickness 1.25 in (3.2 cm)
• Weight 0.8 lb (360 g)
Sensor
• Length 4.75 in (12.0 cm)
• Width 2.0 in (5.1 cm)
• Thickness 7/8 in (2.2 cm)
• Weight 0.22 lb (100 g)

Core Features:

  • Microprocessor-controlled readout unit with dual-wavelength sensor detector
  • Compact, lightweight, and battery-operated
  • Large 4-digit autoranging LCD display (2.8 inch/7.1 cm diagonal)
  • Superior bandpass interference filter
  • Excellent cosine response
  • Water-resistant sensor housing and USB connection
  • Multilingual display (English, French, German, Spanish)
  • Complies with ASTM specifications for MPI and FPI

Key Benefits:

  • Versatile measurement of both UV and visible light in one device
  • Portable design for convenient use in factory, field, or any location
  • Rugged construction with protective rubber housing prevents damage
  • High accuracy (better than +5% with reference to NIST standards)
  • Flexible connectivity with direct or USB connection options
  • Engineered specifically for NDT (Non-Destructive Testing) applications

Contact sales@spectro-uv.com for current lead time.



ASTM-2297-23 Designed | MIL Standard Certified | NIST-Compliant ±5% Accuracy





Made in USA
P/N: XRP-3000
