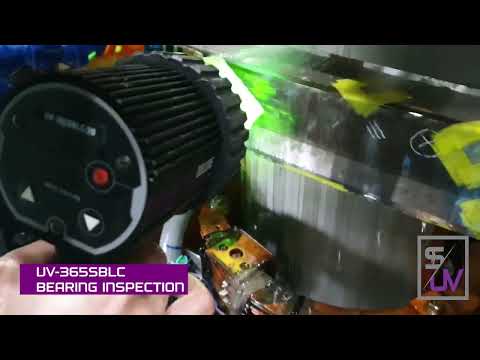

Short video showing the Spectro-UV UVision UV-A blacklight handheld inspection lamp kit in use for an NDT UV-A fluorescent inspection
a picture of the united states flag shaped in the united states with a circle around the words assembled in the usa

UV-365MHC

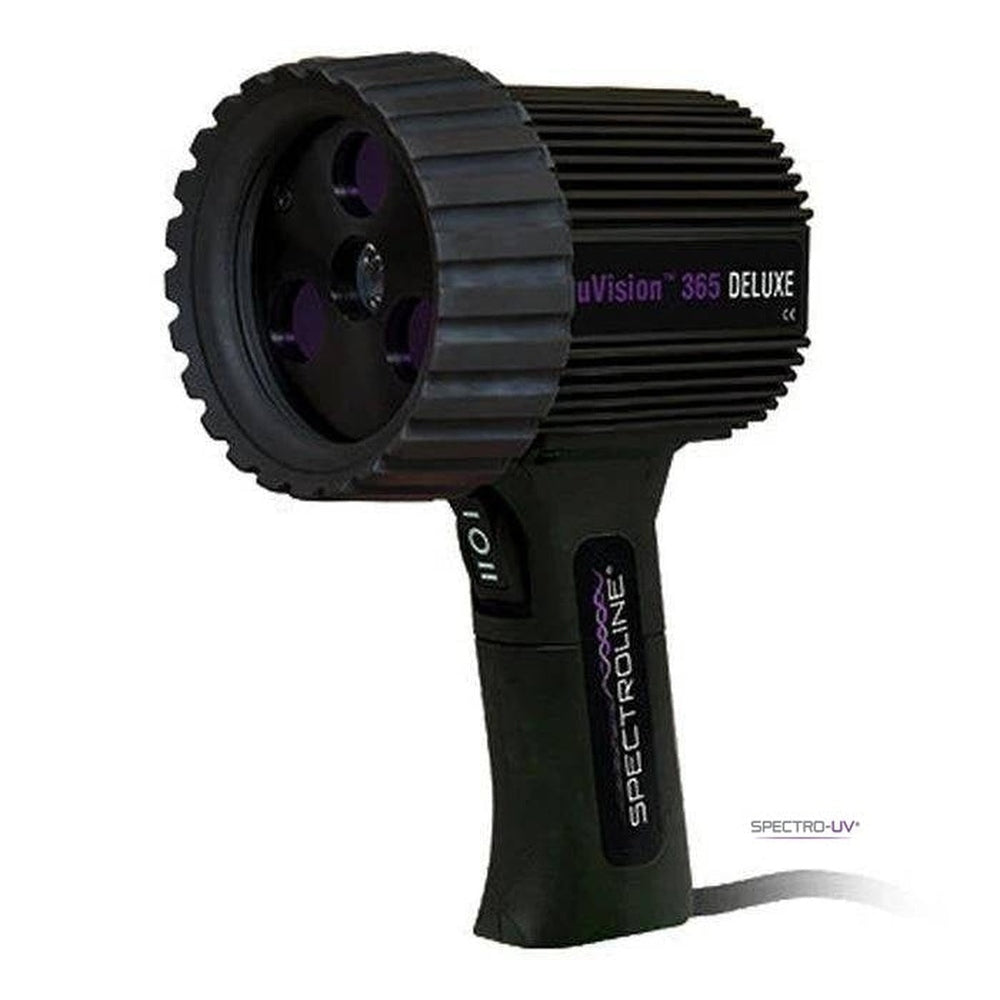

uVision™ Deluxe Series Blacklight Lamp Kit
Sale price$2,665.00
Brochure Intensity profiles User manual Product Comparison Material Safety Data Sheet(MSDS)

The uVision™ 365 Deluxe M-Model is a cordless, battery-powered UV-A inspection lamp used to detect cracks, flaws, and contamination during fluorescent penetrant and magnetic particle inspection. NDT technicians, forensic investigators, and security inspectors use it for field, remote, and outdoor jobs where a power outlet isn't available, running up to 7 hours (MHC) with a 4-hour recharge time.

With superior UV-A intensity and rugged durability, it's designed to thrive in the toughest environments. Whether you're identifying hidden flaws or scanning for leaks, this inspection lamp delivers precise, reliable results.

Problems Solved:

  • Cordless High-Intensity Inspection: Combines 6,000 μW/cm² output with 7-hour battery operation for demanding field work.
  • Large Cordless Coverage: 7-inch diameter at minimum 1,200 μW/cm² provides extensive wireless inspection capability.
  • ASTM E3022 Compliance Mobility: Full compliance without power cord restrictions for critical aerospace and industrial field inspections.



Ideal For: Mobile aerospace maintenance, field service operations, and remote critical component inspections requiring both high intensity and portability.

Includes: Li-Ion battery pack, AC power supply, multiple international adapters

  • UV-A Intensity Range: 6,000µW/cm² at 15" (38cm)
  • UV-A Coverage Area: 7 in (17.8 cm)
  • Visible Light Measurement: < 1 foot-candles (< 11 lux)
  • Battery Life: Run Time: 7 hours
  • Charge Time: 4 hours
  • Power Requirements: 100-120VAC
  • Battery Pack: 14.8V, Li-Ion (rechargeable)
  • ASTM E3022-18
  • EN ISO 3059
  • AIRBUS AITM6-1001 Compliant
  • IP65 Rated
  • High-Performance UV-A LEDs: Features 3 UV-A LEDs for wide coverage and reduced solarization
  • Premium Protection: IP65-rated dust-tight and water-resistant construction for challenging environments
  • Thermal Management: Cool running, fanless design with advanced heat sinks maintains optimal temperature, reducing maintenance and repair needs
  • Superior Optical Performance: UV-A pass & Borofloat filters ensure consistent, high-quality UV output and protection from degradation over time
  • Safety Assurance: Thermal cut-off circuitry prevents overheating during extended use
  • Complete Certification: ASTM E3022 Certified and meets EN ISO 3059 standards.
  • Precision Engineering: Integral UV-A pass filters ensure accurate fluorescent inspection results
  • Three-Way Control Switch: Sealed, grip-mounted rocker switch provides instant selection: white light for preparation, off position, or UV-A for inspection - all within thumb reach
  • uVision™ 365 LED 365nm UV-A lamp
  • In-line AC Power Supply
  • UV-absorbing spectacles
  • Battery pack with 14.8V rechargeable Li-Ion battery
  • Padded protective case

UV-A Intensity Range: 6000µW/cm2 at 15"(38cm).



Similar model UV-365HC with 8 foot power cord

Similar model UV-365HCR has a reel kit with 50-foot power cord

Nominal Steady-State UV-A Intensity at 6,000 μW/cm2 uW/cm2
UV-A Coverage Area: 7 in (17.8 cm) Ø
Model & Plug Type: UV-365MHC - USA (Type A/B)
