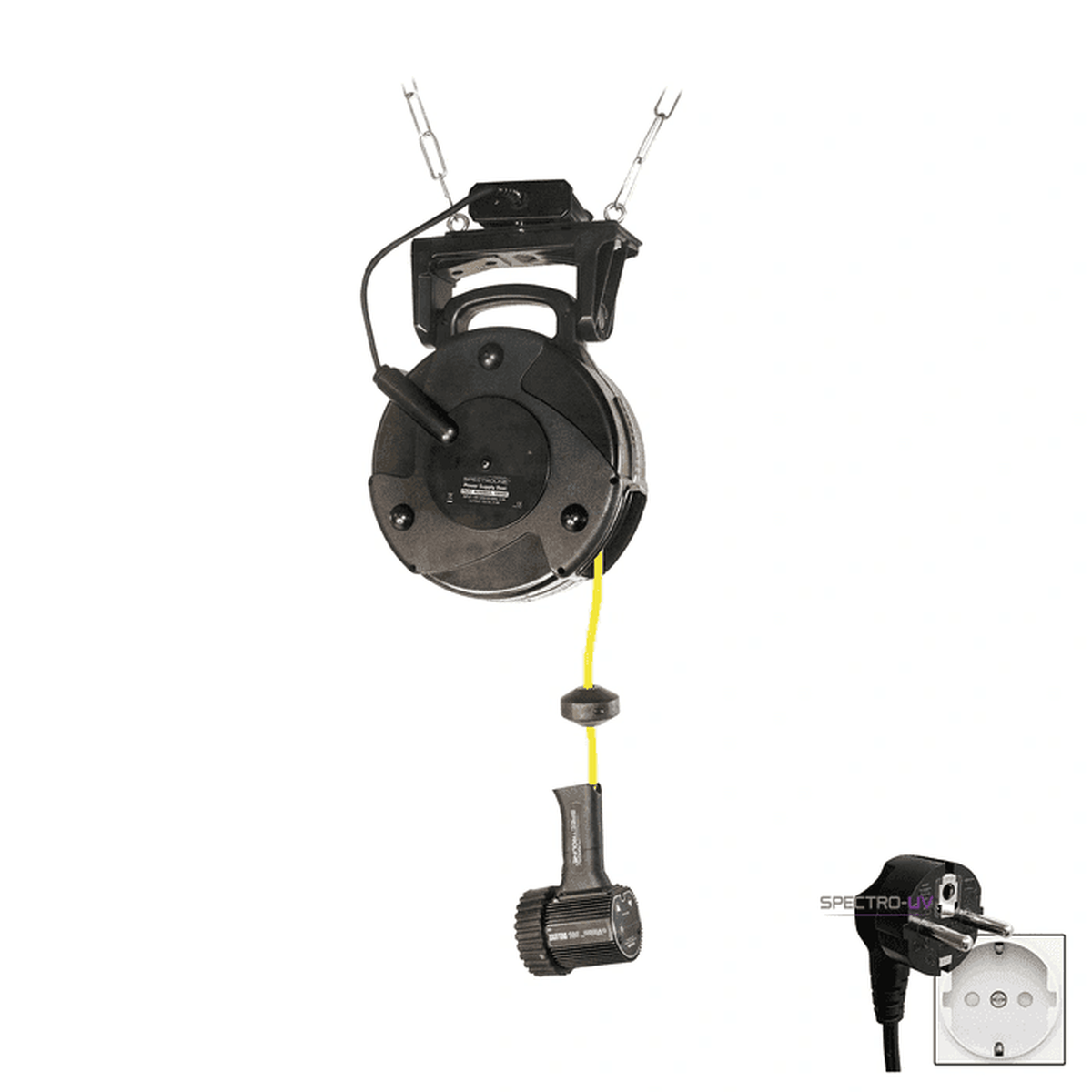

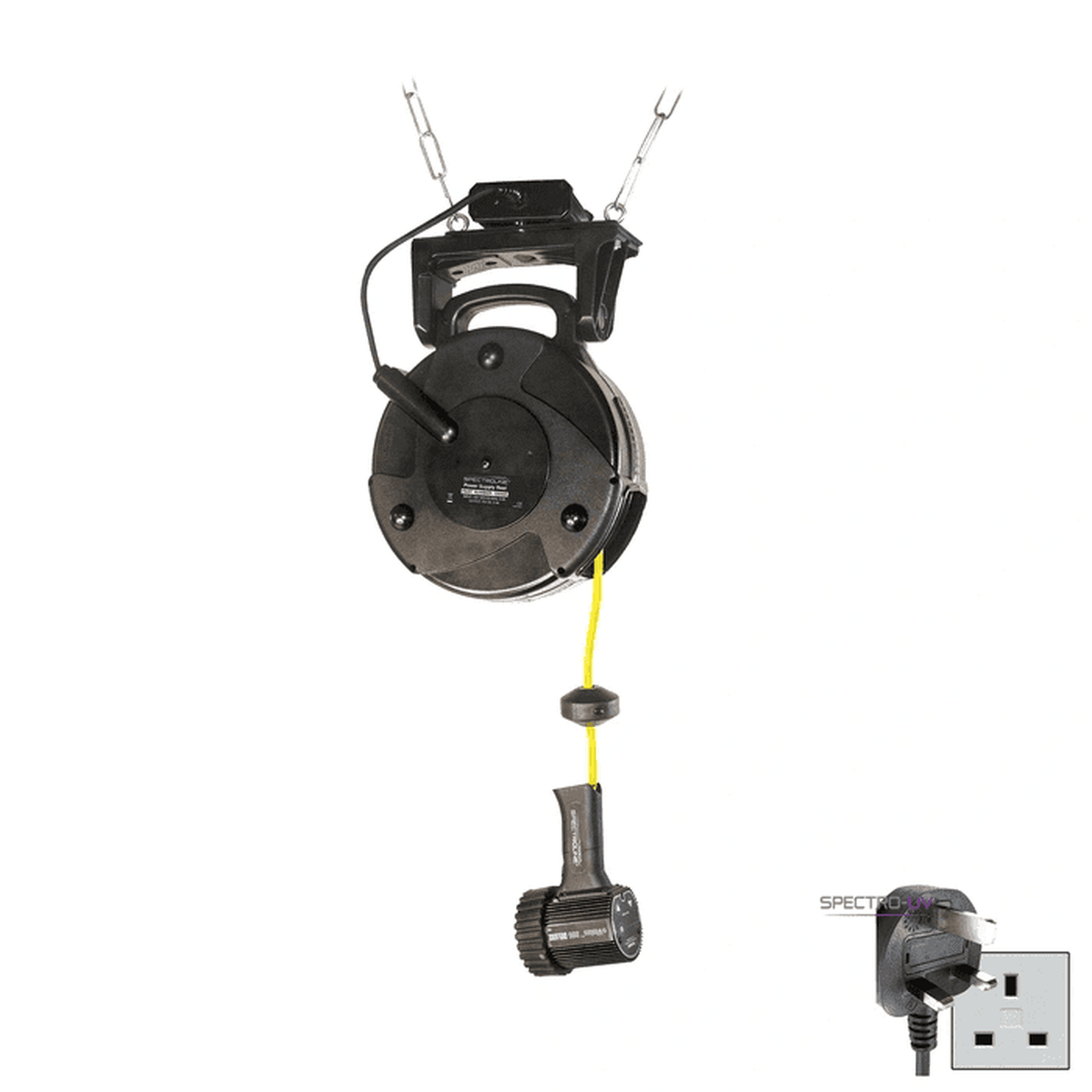

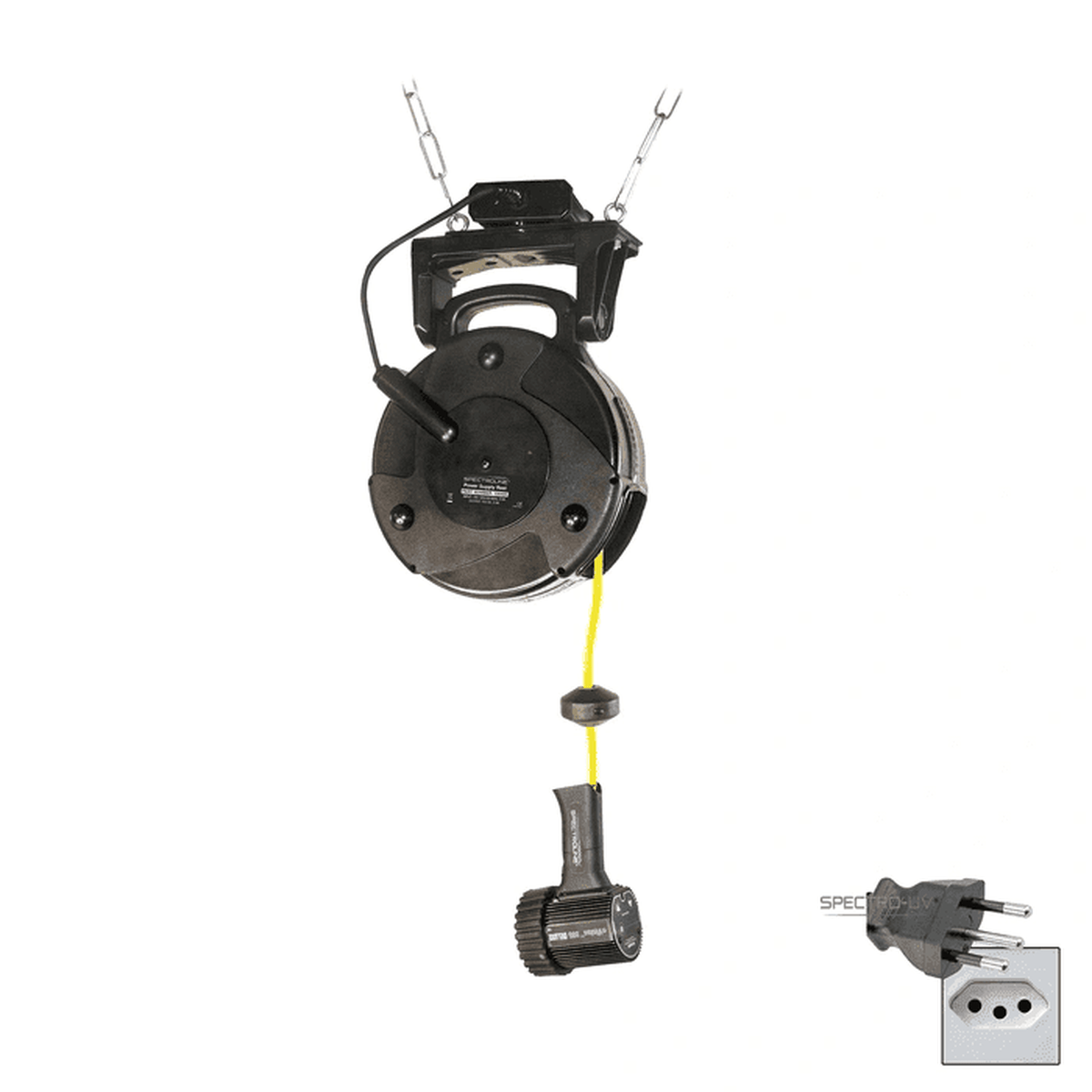

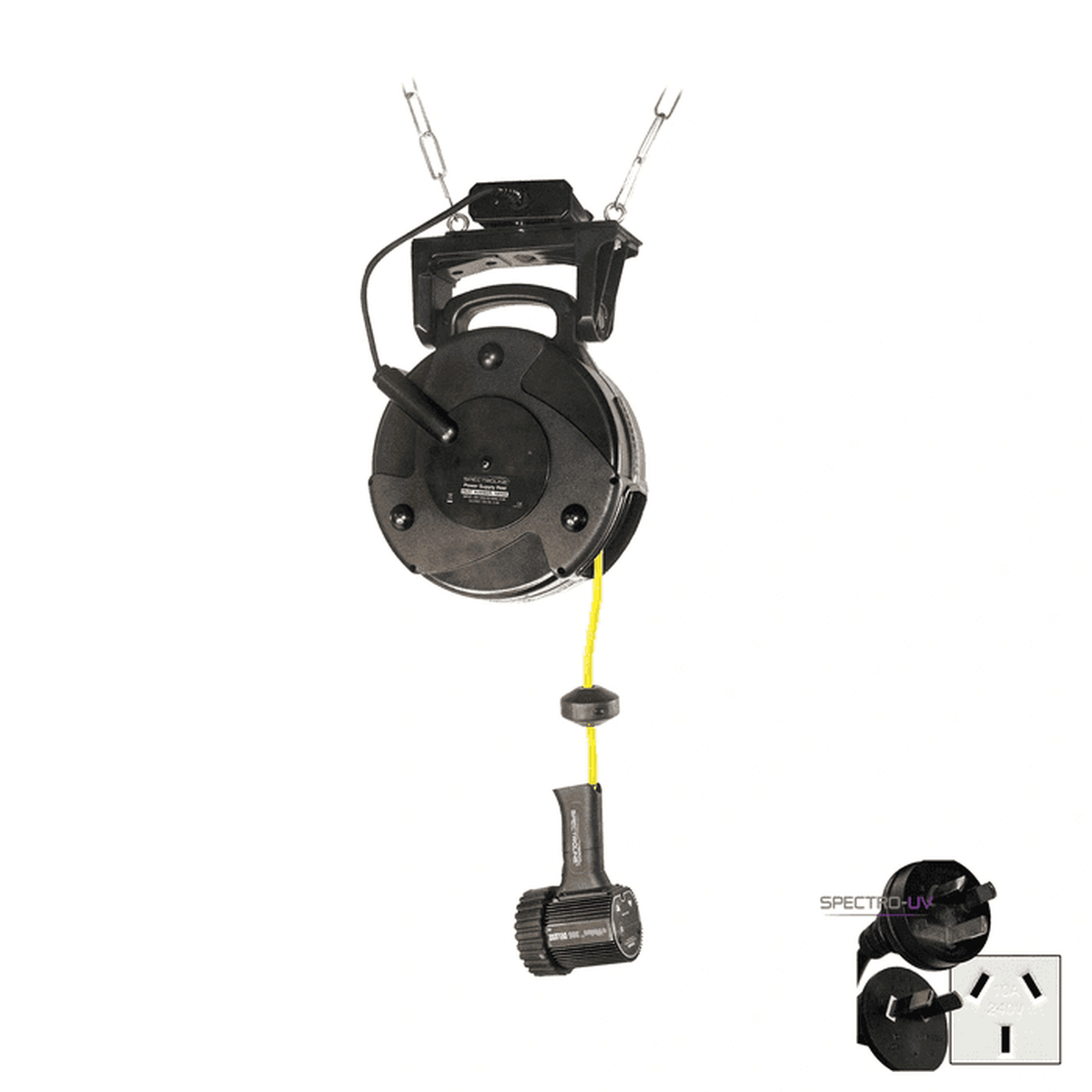

Retractable cable reel with black housing and yellow cable on a white background
uVision™ Blacklight Lamp Kit with UV-A Pass Filters and Cord Reel
Short video showing the UVision UV-A handheld inspection blacklight lamp kit in use for an NDT UV-A fluorescent blacklight inspection
a picture of the united states flag shaped in the united states with a circle around the words assembled in the usa

UV-365HCR

uVision™ Blacklight Lamp Kit with UV-A Pass Filters and Cord Reel
Sale price$2,538.00
Brochure Intensity profiles User manual Product Comparison

The uVision™ 365 Deluxe R-Model is a corded UV-A inspection lamp mounted on a 50-foot cord reel, used to detect cracks and flaws during fluorescent penetrant and magnetic particle inspection across large parts or wide work areas. NDT inspectors use it where extended reach matters more than portability, without sacrificing ASTM E3022 and ISO 3059 compliance.

Ideal for:

  • Limited Reach in Large Facilities: 50-foot retractable power cord reel provides extended range for inspecting large structures, tanks, or aircraft without changing outlets.
  • Cord Management and Trip Hazards: Automatic retraction keeps workspace organized and reduces safety risks.
  • High-Position Inspections: Extended cord length allows ceiling, overhead, or elevated component inspection without ladders or cord extensions.
  • 6,000 μW/cm² Intensity: Strong UV output for reliable flaw detection across the extended working radius.

Ideal For: Shipyard inspections, aerospace maintenance hangars, large tank inspections, and facility audits requiring maximum mobility.

  • UV-A Intensity Range: 6,000µW/cm² at 15" (38cm)
  • UV-A Coverage Area: 7 in (17.8 cm)
  • Visible Light Measurement: < 1 foot-candles (< 11 lux)
  • Power Requirements: 100-120VAC/12VDC (also available in 230V & 240V)

  • ASTM E3022-18
  • EN ISO 3059
  • AIRBUS AITM6-1001 Compliant
  • IP65 Rated
  • High-Performance UV-A LEDs: Features 3 UV-A LEDs for wide coverage and reduced solarization
  • Extended Operation: 50ft heavy-duty power cord enables continuous use without battery limitations
  • Premium Protection: IP65-rated dust-tight and water-resistant construction for challenging environments
  • Thermal Management: Cool running, fanless design with advanced heat sinks maintains optimal temperature, reducing maintenance and repair needs
  • Superior Optical Performance: UV-A pass & Borofloat filters ensure consistent, high-quality UV output and protection from degradation over time
  • Complete Certification: ASTM E3022 Certified and meets EN ISO 3059 standards.
  • Precision Engineering: Integral UV-A pass filters ensure accurate fluorescent inspection results
  • uVision™ 365 LED 365nm UV-A lamp on a reel with 50 ft. retracting A/C power cord
  • In-line AC Power Supply
  • UV-absorbing spectacles
  • Hooks to suspend on ceiling

UV-A Intensity Range: 6000µW/cm2 at 15"(38cm).



Similar model UV-365MHC has an external battery pack

    Nominal Steady-State UV-A Intensity at 6,000 μW/cm2 uW/cm2
    UV-A Coverage Area: 6.4 in (16 cm) Ø
    Model & Plug Type: UV-365HCR - USA (Type A/B)
