MAXIMA™ Ultra High Intensity UV-A Blacklight Lamp
MAXIMA™ Ultra High Intensity UV-A Blacklight Lamp

ML-3500C

MAXIMA™ Ultra High Intensity UV-A Blacklight Lamp
Sale price$2,639.00
Brochure User manual Product Comparison

Model ML-3500C MAXIMA™ 3500 Series lamp makes Ultraviolet (UV) Paint Curing easy. Featuring micro discharge light (MDL) technology with a fatigue-free ergonomic design. Deliver up to 10 times the UV-A output of conventional HID inspection lamps. They have a lightweight, solid state ballast and integral bulb/reflector assembly. Stay-cool, impact-resistant and dent-proof housing. Prefocused at the factory.

  • Polymer housing - ensures the lamp remains cool during use and protects against accidental burn or injury
  • Integral bulb/reflector assembly - designed to allow for easy installation of a replacement bulb/reflector assembly
  • Pre-focused bulb - ensures peak performance
  • Fully enclosed solid-state ballast

UV-A Intensity: 90,000 μW/cm² nominal steady state at 15 inches (38 cm)

Output Power: 35 Watts

Weight:

  • Total Weight: 6.1 lbs (2.8 kg)
  • Lamp Head: 2.5 lbs (1.1 kg)
  • Ballast: 3.6 lbs (1.6 kg)

Ballast Type: Solid State (fully enclosed)

Bulb Type: Micro Discharge Light (MDL)

Reflector: BLE-35RA Spot/Coated Reflector Assembly

Filter: 2F100C (different from ML-3500S)

Cord Length: Lamp Cord: 8 ft / Power Cord: 8 ft


Key Features:

  • Ultra High Intensity UV-A Lamp with significantly higher intensity at 90,000 μW/cm² (measured at 15 inches/38 cm)
  • 35 Watts output power
  • Pre-focused bulb/reflector assembly from factory
  • Integral bulb/reflector assembly design for easy replacement
  • Polymer housing that remains cool during use
  • Fully enclosed solid state ballast
  • Micro Discharge Light (MDL) bulb type

Benefits:

  • Exceptional intensity (nearly twice that of the ML-3500S) for maximum fluorescent response in NDT applications
  • Pre-focused assembly ensures optimal performance without adjustments
  • Easy bulb/reflector replacement simplifies maintenance
  • Cool polymer housing prevents burn injuries during operation
  • Solid state ballast provides reliable operation
  • UV-A lamp
  • 35W micro discharge light (MDL)
  • BLE-35RA Flood/Anodized reflector assembly 2F958 Filter
  • UVS-30 UV absorbing spectacles
  • UVS-40 Fluorescence enhancing spectacles
  • 8ft. lamp cord
  • 8ft. power cord

UV-A Intensity Range: 90000µW/cm2 at 15"(38cm).

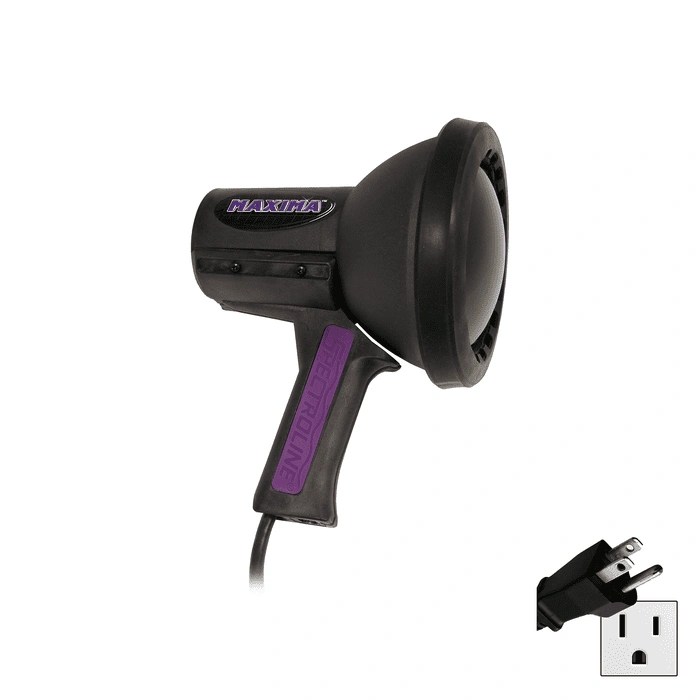

Model & Plug Type: ML-3500C - USA (Type A/B)

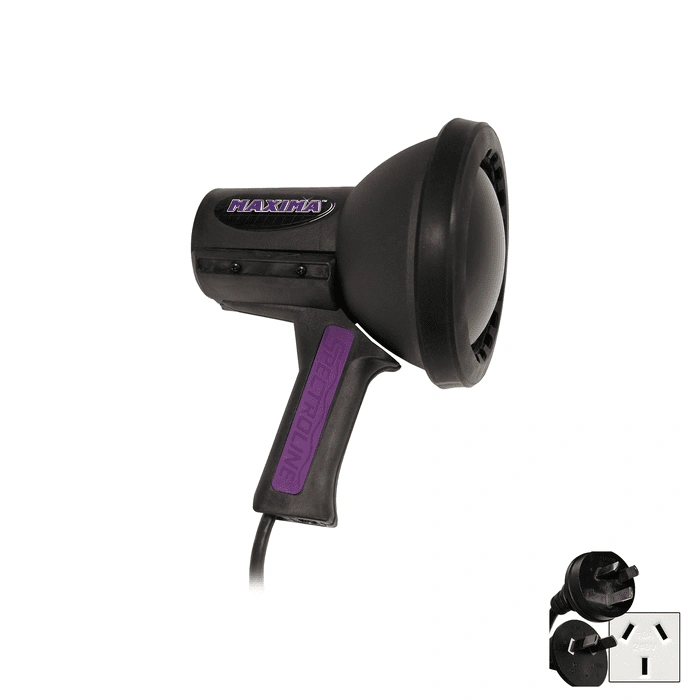

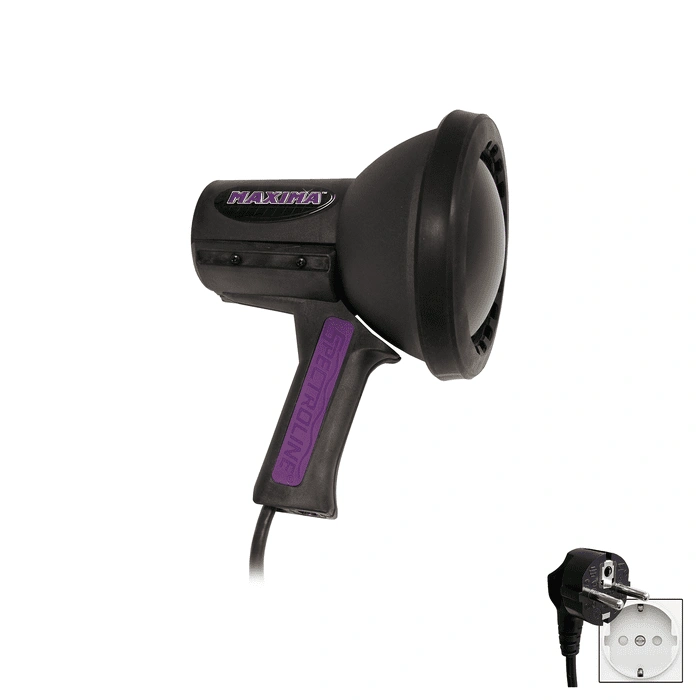

Model & Plug Type
