EK-3000 EagleEye™ UV-A / White Light LED Inspection Kit (Also available in foreign voltages)

Regular price $999.00
Regular price Sale price $999.00

The EagleEye™ EK-3000 inspection kit contains the EE-365 lamp, a palm-sized, versatile, hands-free light source featuring two ultra-high intensity UV-A LEDs for NDT testing, plus a three-LED white light assembly for general inspection.

Nominal Steady-State UV-A Intensity at 4500 uW/cm2
UV-A Coverage Area: 5.5 in (14 cm)
Visible Light Measurement: <1 foot-candle (<10 lux)
Model & Plug Type
Brochure Intensity profiles User manual

Description

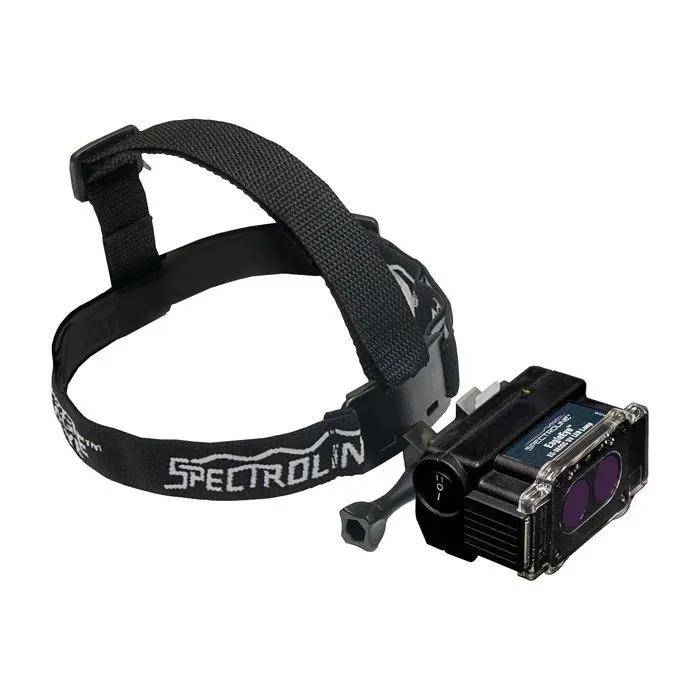

The EagleEye™ EK-3000 inspection kit contains the EE-365 lamp, a palm-sized, versatile, hands-free light source featuring two ultra-high intensity UV-A LEDs for NDT testing, plus a three-LED white light assembly for general inspection. In addition, the kit contains a unique lamp mount/sprayer that allows the lamp to be mounted together with a penetrant can for single-handed NDT yoke inspection, and an adjustable strap so the lamp can be worn on a helmet or directly on the head for hands-free operation. The EagleEye EK-3000 is ideal for fluorescent magnetic particle and penetrant testing, mining inspection and other specialized applications.

What’s included

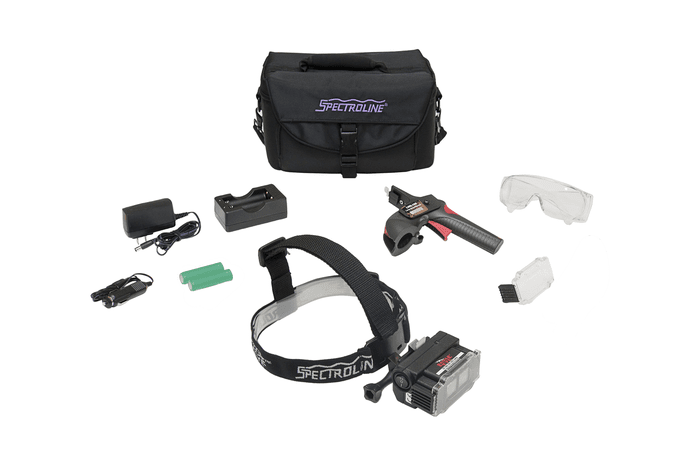

Comes complete with EE-365 EagleEye™ 2 Lamp with head strap, Lamp mount/Sprayer, two splash guards with integral particulate filter, two rechargeable batteries, battery charging cradle with AC cord set, UV- absorbing spectacles, and soft carrying case.

Key Features

  • Instant-on operation. Reaches full UV-A intensity immediately.
  • 100,000-hour LED service.
  • Built-in fan keeps light source cool to maintain optimum UV-A intensity during extended use.
  • Splash guard with integral particulate filter protects UV-A LEDs and fan from damage.
  • Powered by one rechargeable lithium-ion battery (installed). Provides up to 75 minutes of continuous inspection between charges
