EDG-13SBLC Edge™ 13 Led 365nm UV-A Panel Flood Lamp with UV-A Pass Filters and AC Control Box (Also available in foreign voltages)

Name: EDG-13SBLC Edge™ 13 Led 365nm UV-A Panel Flood Lamp with UV-A Pass Filters and AC Control Box (Also available in foreign voltages)
Availability: InStock

$3,445.00

The first overhead LED 365nm UV-A lamp to guarantee an IP65 rating, compliance, and gang-ability.

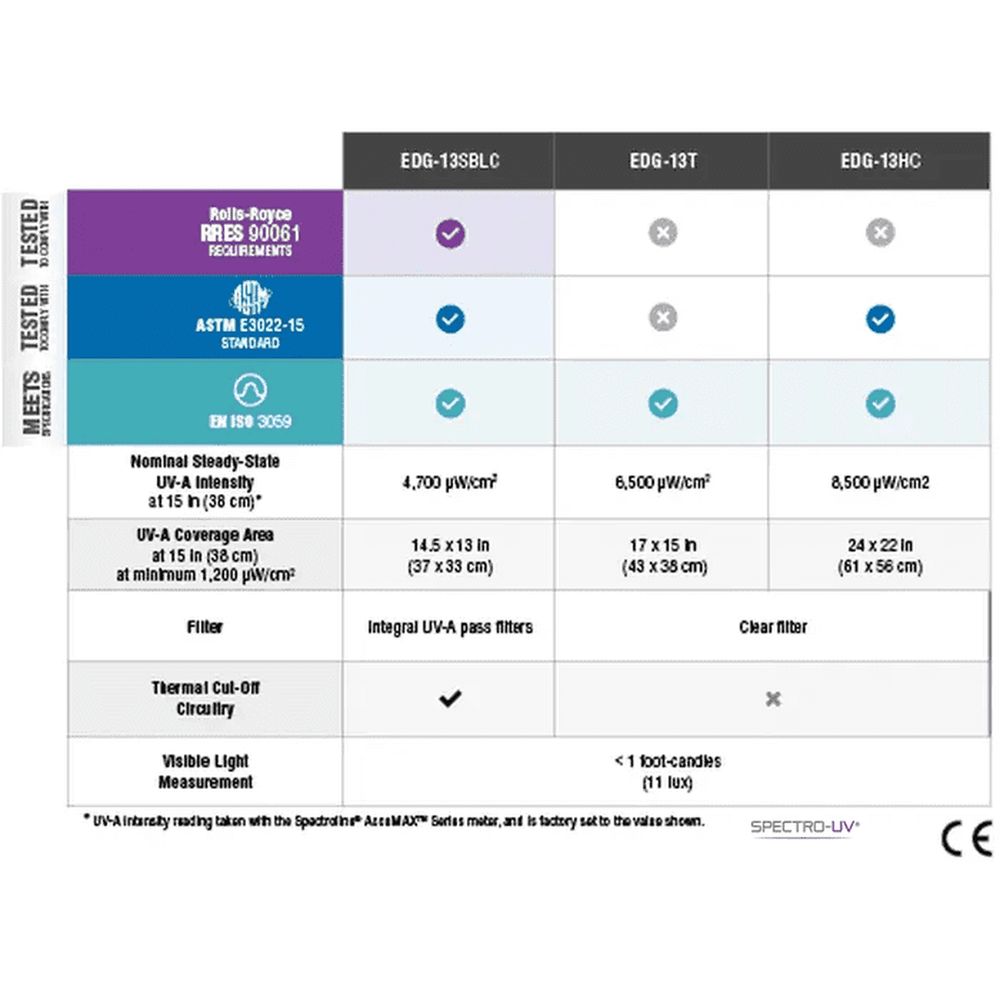

Nominal Steady-State UV-A Intensity at 4700 uW/cm2

UV-A Coverage Area: 14.5 x 13 in (37 x 33 cm)

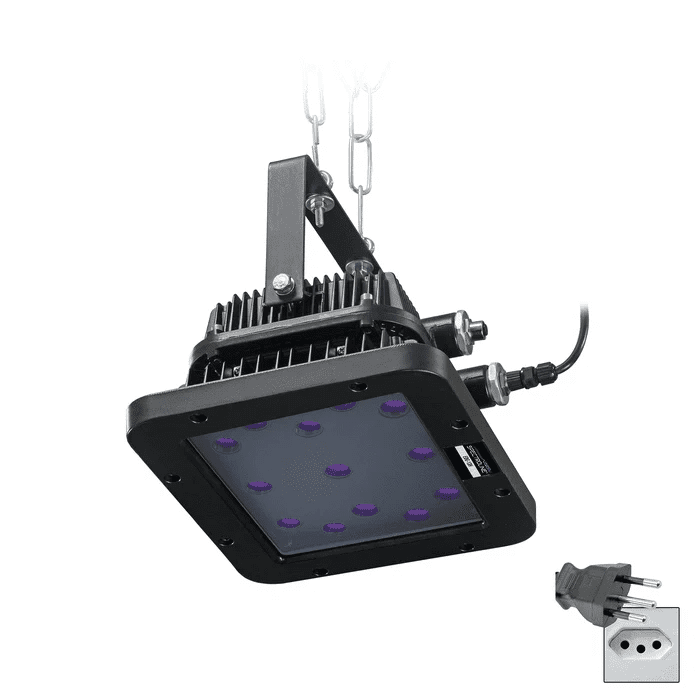

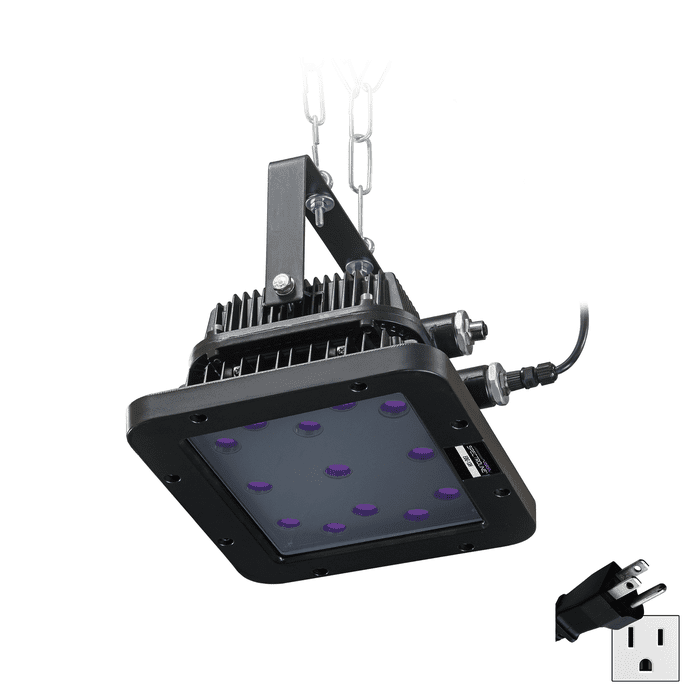

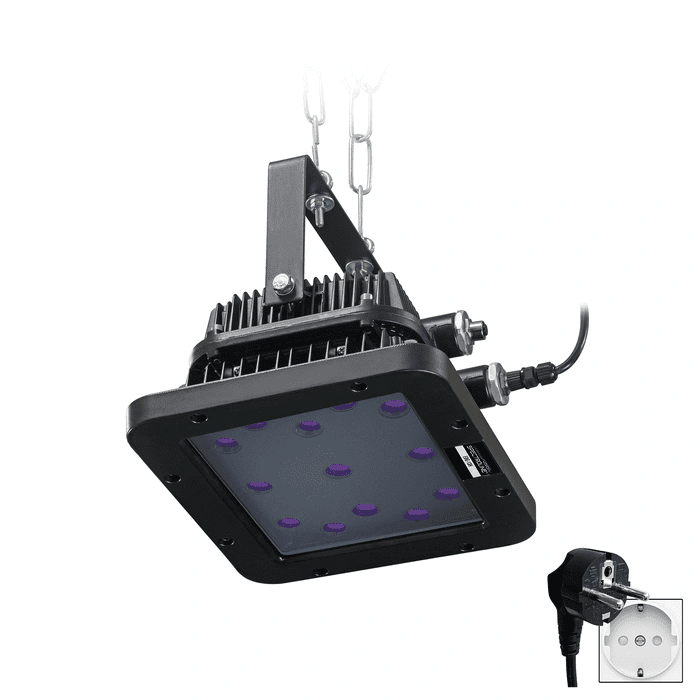

Model & Plug Type EDG-13SBLC - USA (Type A/B) EDG-13SBLC/F - European (Type C/F) EDG-13SBLC/FA - Australia/China (Type I) EDG-13SBLC/FB - United Kingdom (Type G) EDG-13SBLC/FBR - Brazil (Type N) EDG-13SBLC/FC - Australia (Type I) with CCC Configuration

Product variants

Brochure Intensity profiles User manual

Description

Get an EDGE on your overhead inspections with the newest flood lamp series from Spectroline®, the EDGE™ 13 SERIES. Designed specifically for NDT professionals who require a reliable and rugged overhead UV-A LED lamp for large parts inspection, these IP65 rated panel lamps are dust-tight and protected against jets of water from all angles. Expand coverage by connecting lamps together via gang ports. Fanless cooling means fewer headaches. The only overhead NDT lamp series that has all of these features and comes in a RRES-90061 model.

What’s included

Comes complete with EDGE™ 13 Series Overhead 365nm UV-A Lamp, and AC power cord.

Key Features

IP 65 rating: the lamp is dust-proof and water-resistant
Meets ISO EN 3059 specifications for fluorescent inspection
Cool running, fanless design
Wide areas of coverage for optimal fluorescent response
RRES 90061, ASTM E3022, and AITM6-1001 Compliant Version
Long-lasting UV-A lenses protect against solarization
Integral black-light filters

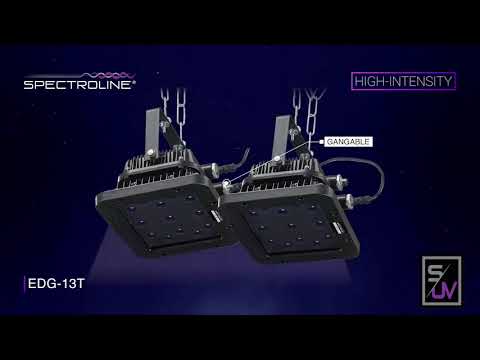

Gangable– link lamps together using single power source for greater coverage area
