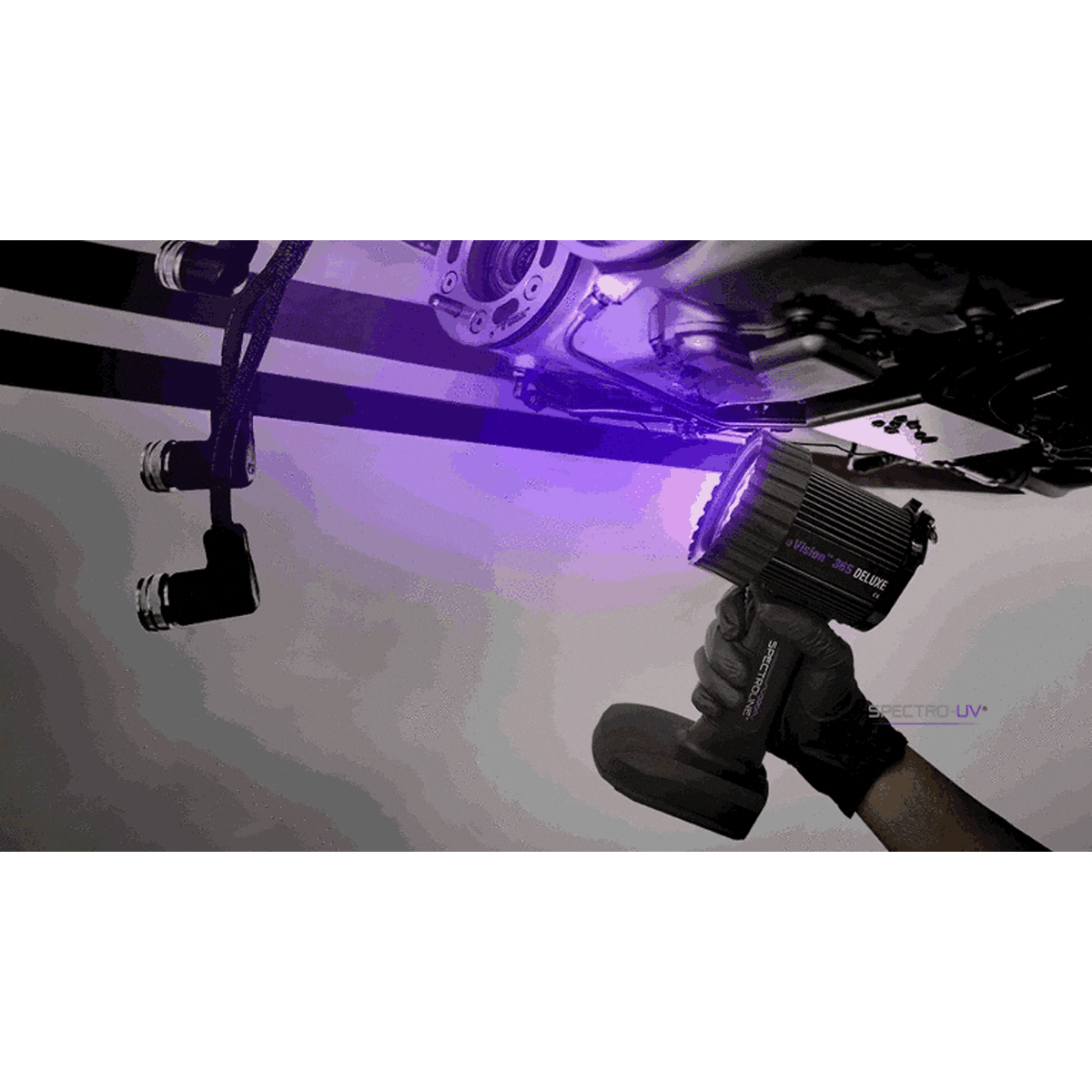

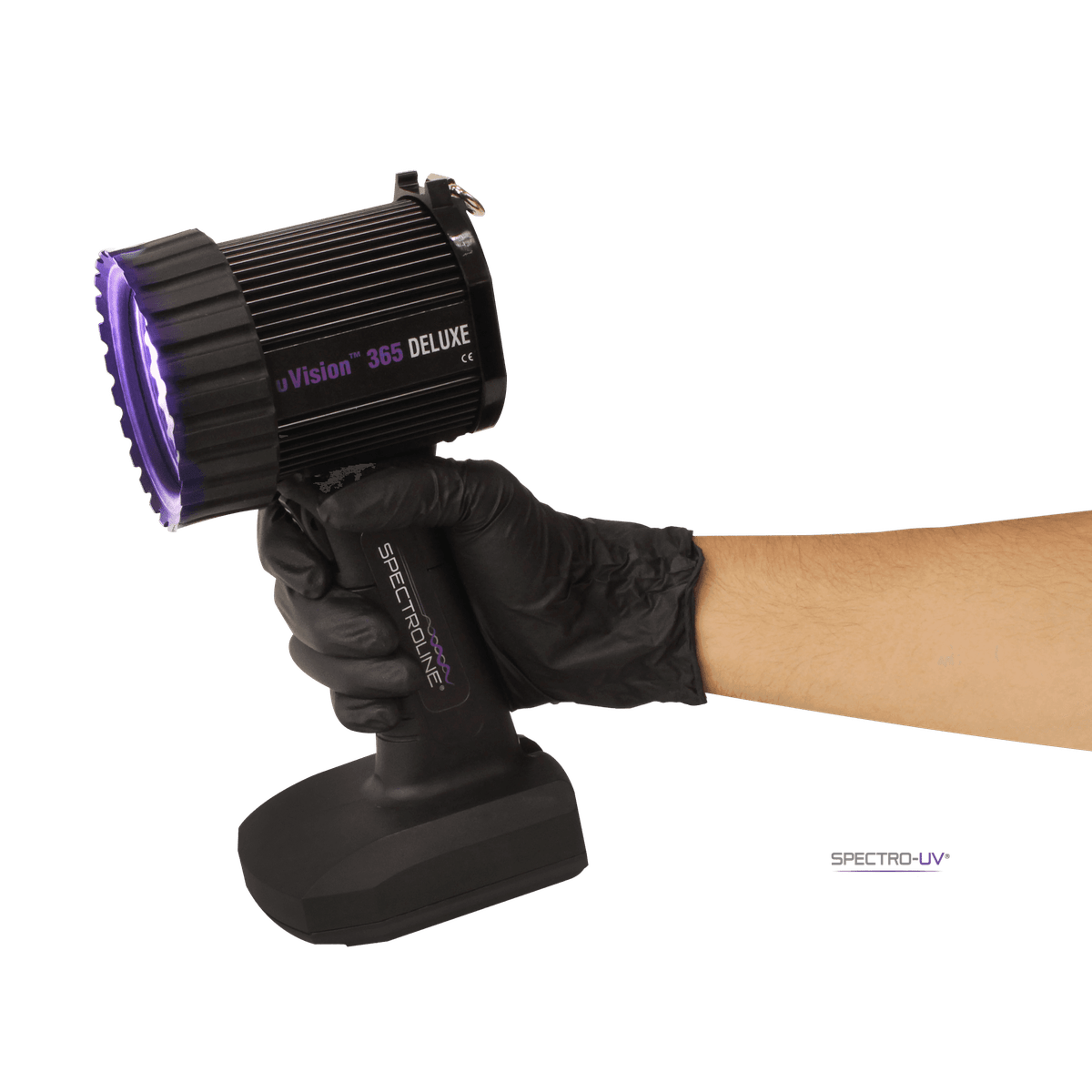

Hand wearing a black glove holding a black UV light with 'Vision 360 Deluxe' branding on a white background.

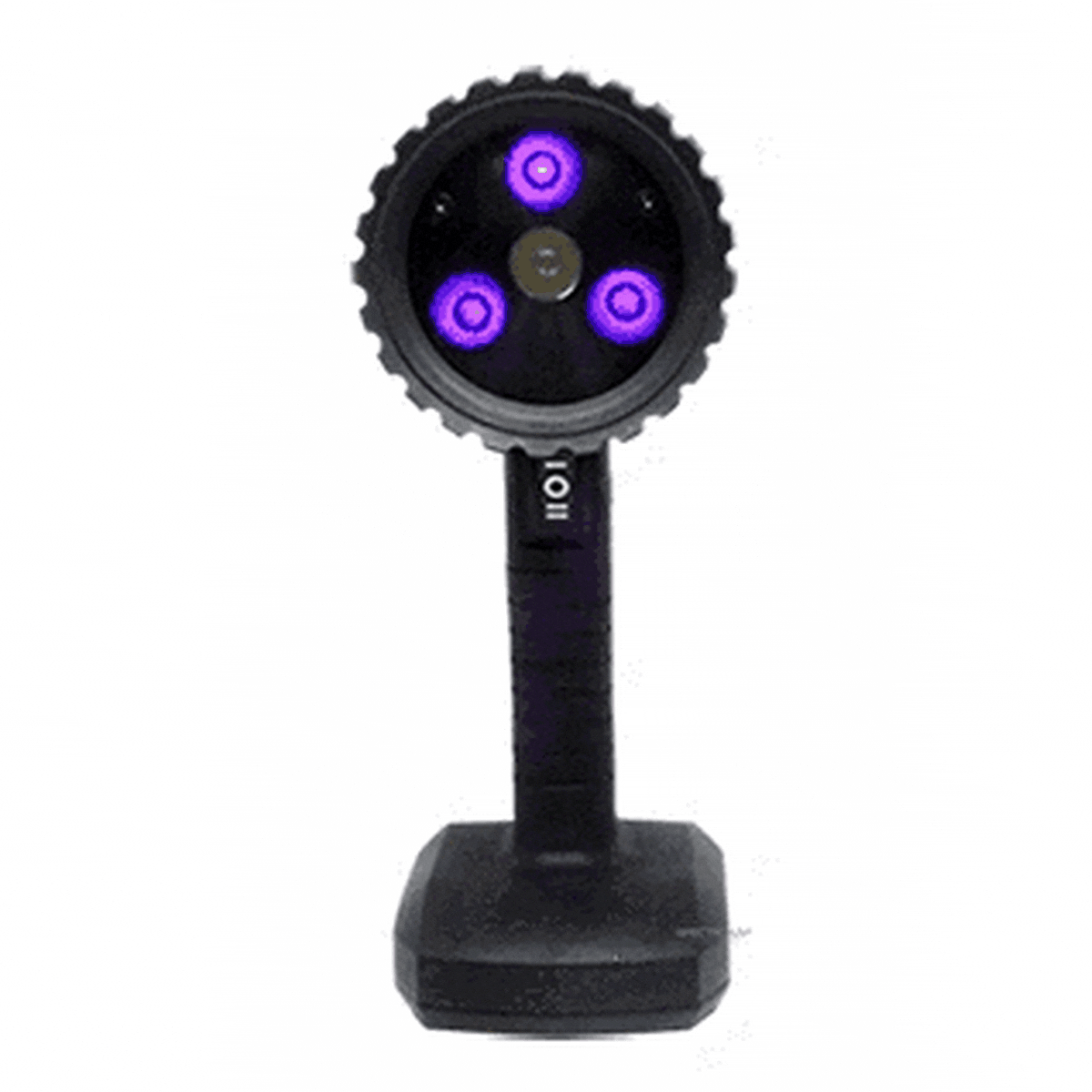

uVision 365 LED 365nm Ultraviolet UV-A Blacklight Lamp Kit with in handle Li-Ion Battery Also available in foreign voltages
uVision™ Blacklight Lamp Kit
uVision™ Blacklight Lamp Kit

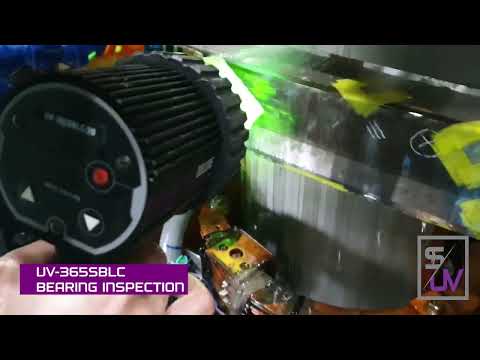

Short video showing the UVision UV-A blacklight handheld inspection lamp kit in use for an NDT UV-A fluorescent inspection. This UVision UV-A lamp can be used for UV fluorescent inspections, NDT / NDE, Forensics, and specialty UV applications such as Agriculture / Rodent Contamination Detection, Gem and Mineral Inspection, Beauty and Skincare

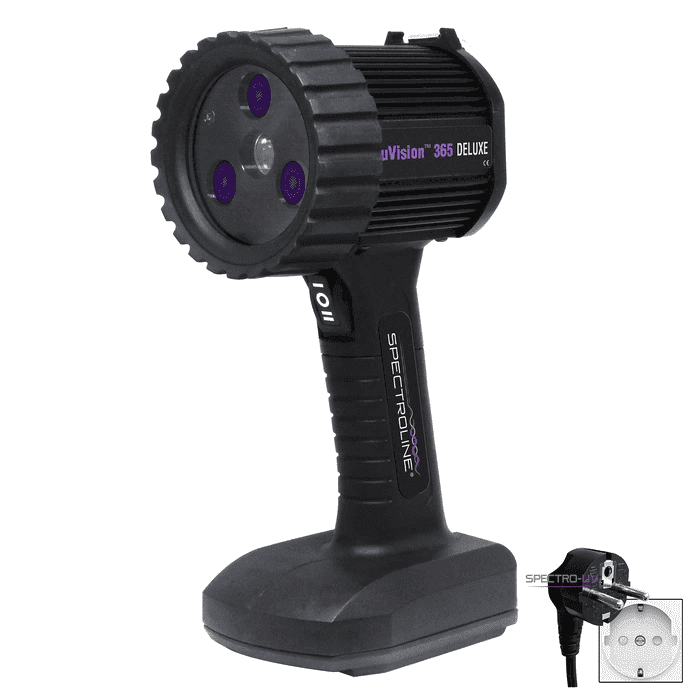

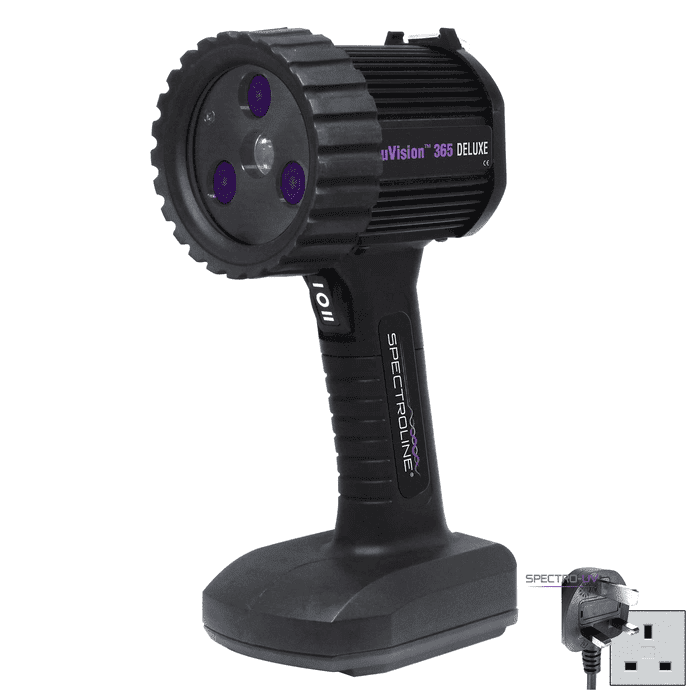

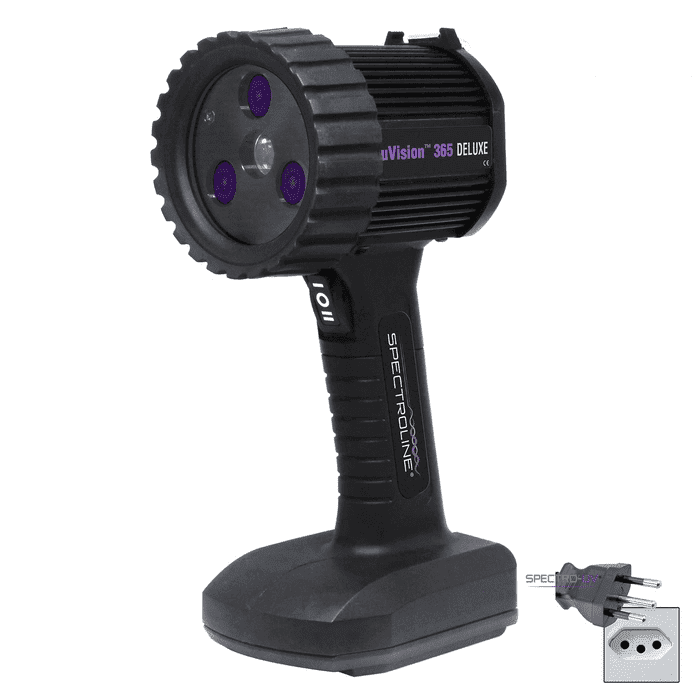

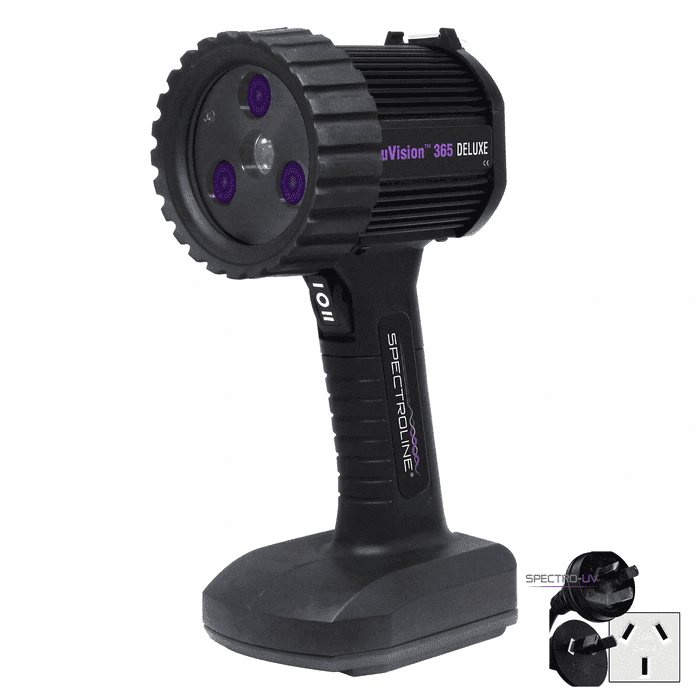

uVision 365 LED 365nm Ultraviolet UV-A Blacklight Lamp Kit with in handle Li-Ion Battery Also available in foreign voltages
a picture of the united states flag shaped in the united states with a circle around the words assembled in the usa

UV-365ZHC

uVision™ Blacklight Lamp Kit
Sale price$2,132.00
Brochure Intensity profiles User manual Product Comparison Material Safety Data Sheet(MSDS)

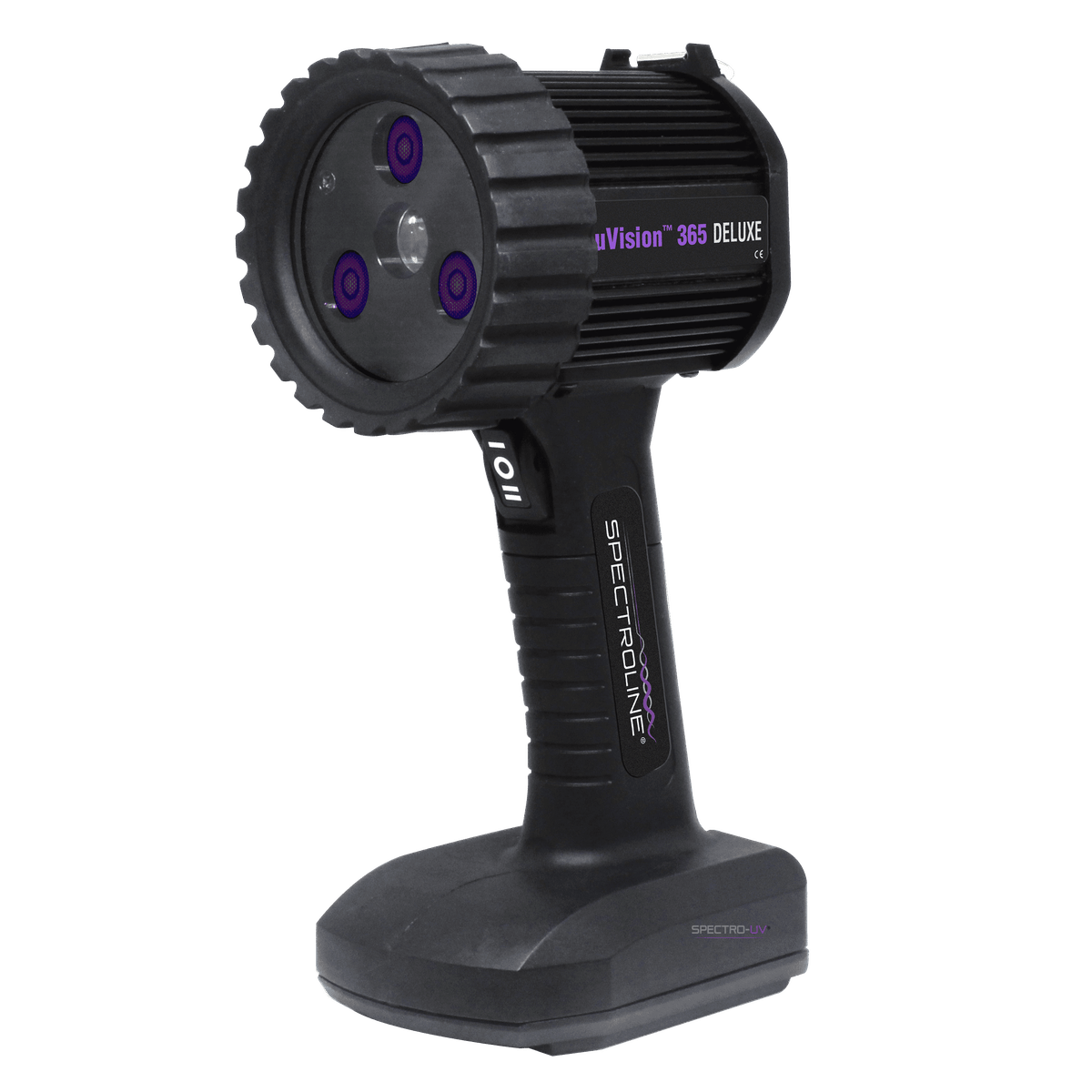

The uVision™ 365 Deluxe Z-Model is a cordless UV-A inspection lamp with an in-handle rechargeable battery, used to detect cracks and flaws during fluorescent penetrant and magnetic particle inspection in the field. NDT inspectors use it for compliance-critical work (ASTM E3022, ISO 3059, Airbus, Pratt & Whitney) in locations without convenient power access.

With superior UV-A intensity and rugged durability, it's designed to thrive in the toughest environments. Whether you're in the field conducting NDT inspections, scanning forensic evidence, or ensuring security checks, this lightweight and cordless blacklight ensures you work faster and more efficiently in any environment. No cords. No overheating.

Problems Solved:

  • Maximum Cordless Power: Industry-leading 8,000μW/cm² intensity in a 7-hour battery platform delivers uncompromising performance without power cords.
  • Largest Cordless Coverage: 8.25-inch diameter at minimum 1,200 μW/cm² provides the widest wireless inspection area available.
  • Heavy-Duty Field Work: 7-hour runtime handles demanding inspection schedules in remote locations without performance degradation.
  • ASTM E3022 Compliance: Full compliance with the freedom of all-day cordless operation.



Ideal For: Large structure inspections, remote aerospace maintenance, field weld examination, and applications where maximum intensity and coverage cannot be compromised by power availability.

Features: 7-hour runtime, 4-hour charge time, integral UV-A pass filters

  • UV-A Intensity Range: 8,000µW/cm² at 15" (38cm)
  • UV-A Coverage Area: 8.25 in (21 cm)
  • Visible Light Measurement: < 1 foot-candles (< 11 lux)
  • Battery Life: Run Time: 7 hours
  • Charge Time: 4 hours
  • Power Requirements: 100-120VAC/12VDC (also available in 230V & 240V)
  • Battery Pack: 14.8V, Lithium Ion(rechargeable)
  • ASTM E3022-18
  • EN ISO 3059
  • IP65 Rated
  • High-Performance UV-A LEDs: Features 3 UV-A LEDs for wide coverage and reduced solarization
  • Premium Protection: IP65-rated dust-tight and water-resistant construction for challenging environments
  • Thermal Management: Cool running, fanless design with advanced heat sinks maintains optimal temperature, reducing maintenance and repair needs
  • Superior Optical Performance: UV-A pass & Borofloat filters ensure consistent, high-quality UV output and protection from degradation over time
  • Safety Assurance: Thermal cut-off circuitry prevents overheating during extended use
  • Complete Certification: ASTM E3022 Certified and meets EN ISO 3059 standards.
  • Precision Engineering: Integral UV-A pass filters ensure accurate fluorescent inspection results

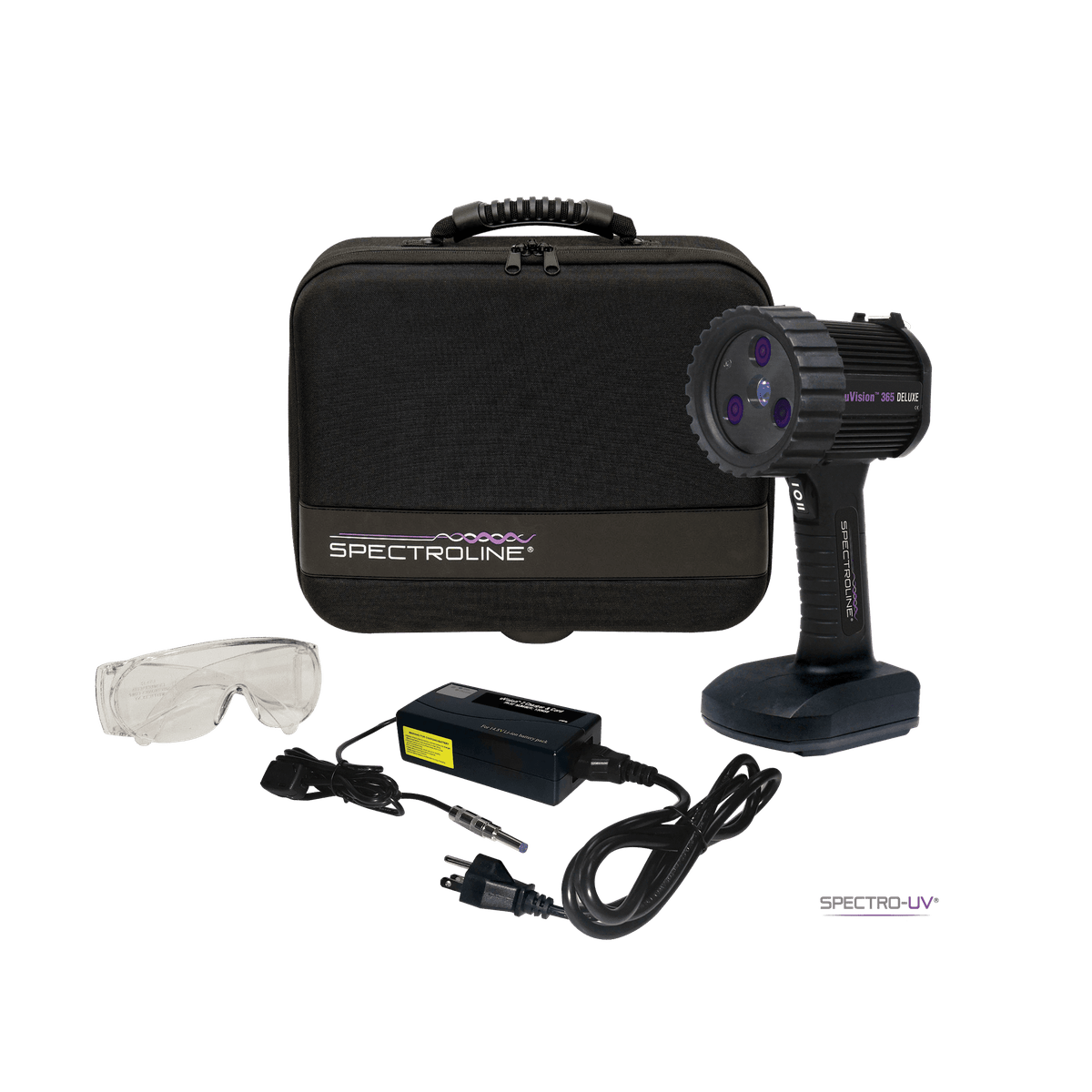

  • uVision™ 365 LED 365nm UV-A lamp
  • In-line AC Power charger and cord
  • UV-absorbing spectacles
  • In-handle lithium battery
  • Padded protective case

UV-A Intensity Range: 8000µW/cm2 at 15"(38cm)



Nominal Steady-State UV-A Intensity at 8,000 μW/cm2 uW/cm2
UV-A Coverage Area: 8.25 in (21 cm) Ø

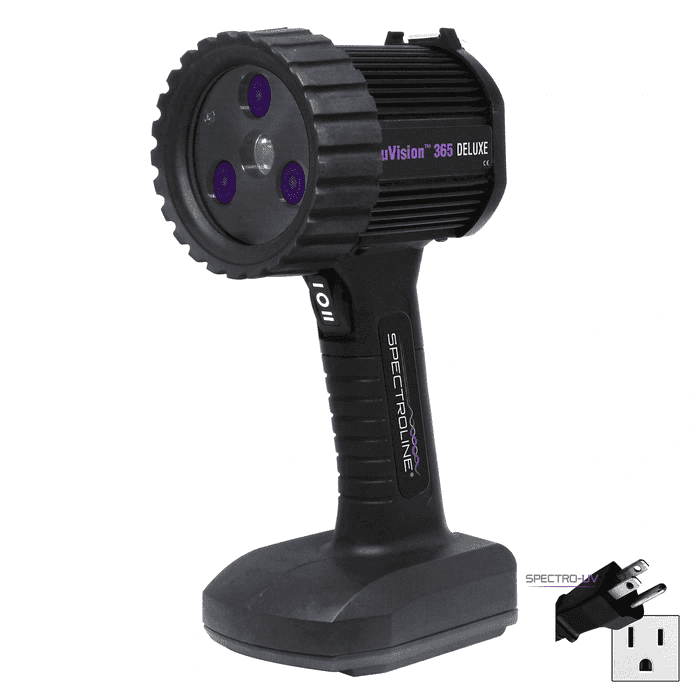

Model & Plug Type: UV-365ZHC - USA (Type A/B)

Model & Plug Type
