Lámpara reflectora de panel UV-A Edge 13 LED de 365 nm con filtros de paso UV-A y caja de control de CA (también disponible en voltajes extranjeros)
An overhead LED lamp with a black housing, featuring purple-colored LED lights, designed for UV applications, with certification logos ASME, R, ISO, and Made in USA.
Lámpara reflectora de panel UV-A Edge 13 LED de 365 nm con filtros de paso UV-A y caja de control de CA (también disponible en voltajes extranjeros)
Edge 13 LED 365nm UV-A Panel Flood Lamp with UV-A Pass Filters and AC Control Box Also available in foreign voltages
Edge 13 LED 365nm UV-A Panel Flood Lamp with UV-A Pass Filters and AC Control Box Also available in foreign voltages
Edge 13 LED 365nm UV-A Panel Flood Lamp with UV-A Pass Filters and AC Control Box Also available in foreign voltages
Edge 13 LED 365nm UV-A Panel Flood Lamp with UV-A Pass Filters and AC Control Box Also available in foreign voltages
a picture of the united states flag shaped in the united states with a circle around the words assembled in the usa

EDG-13SBLC

Lámpara reflectora de panel UV-A Edge 13 LED de 365 nm con filtros de paso UV-A y caja de control de CA (también disponible en voltajes extranjeros)

Precio de oferta£2,027.10 Precio normal£2,252.33
Ahorra £225.23
Brochure Intensity profiles User manual
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • iDEAL Wero
  • Mastercard
  • Shop Pay
  • Visa

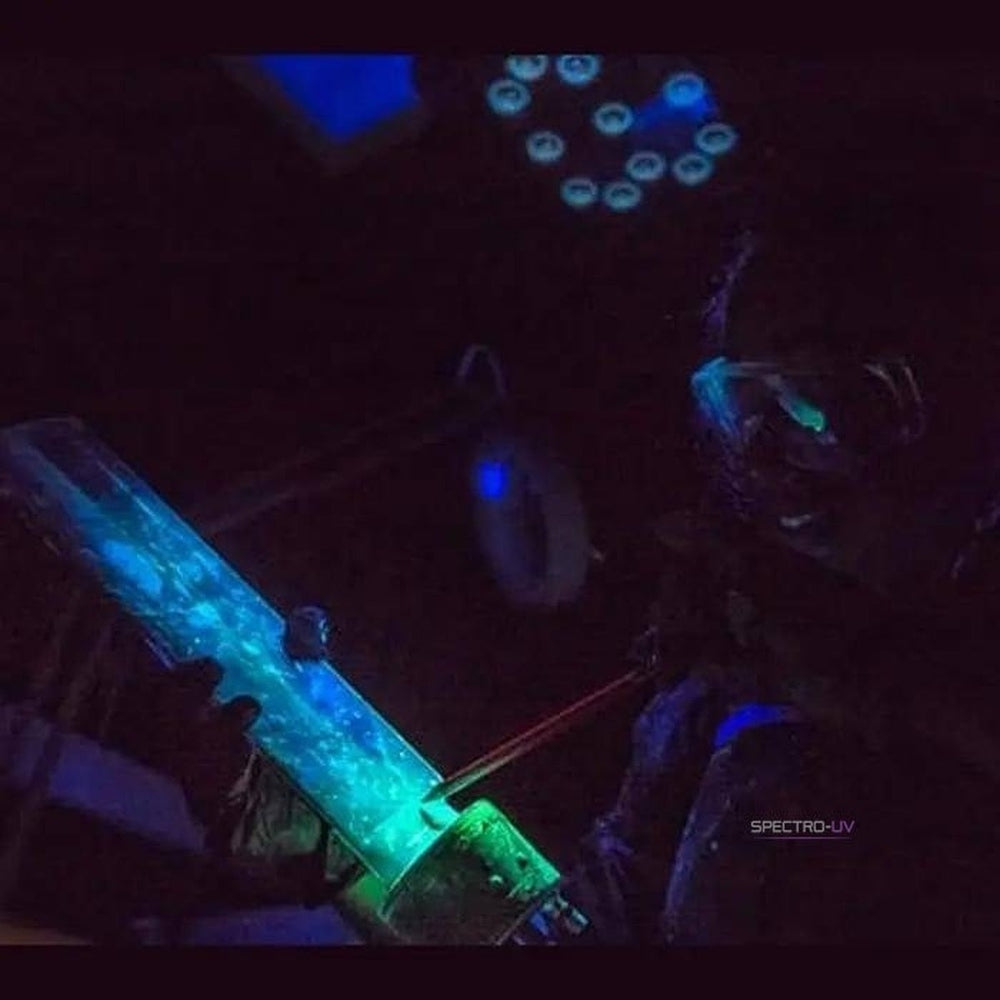

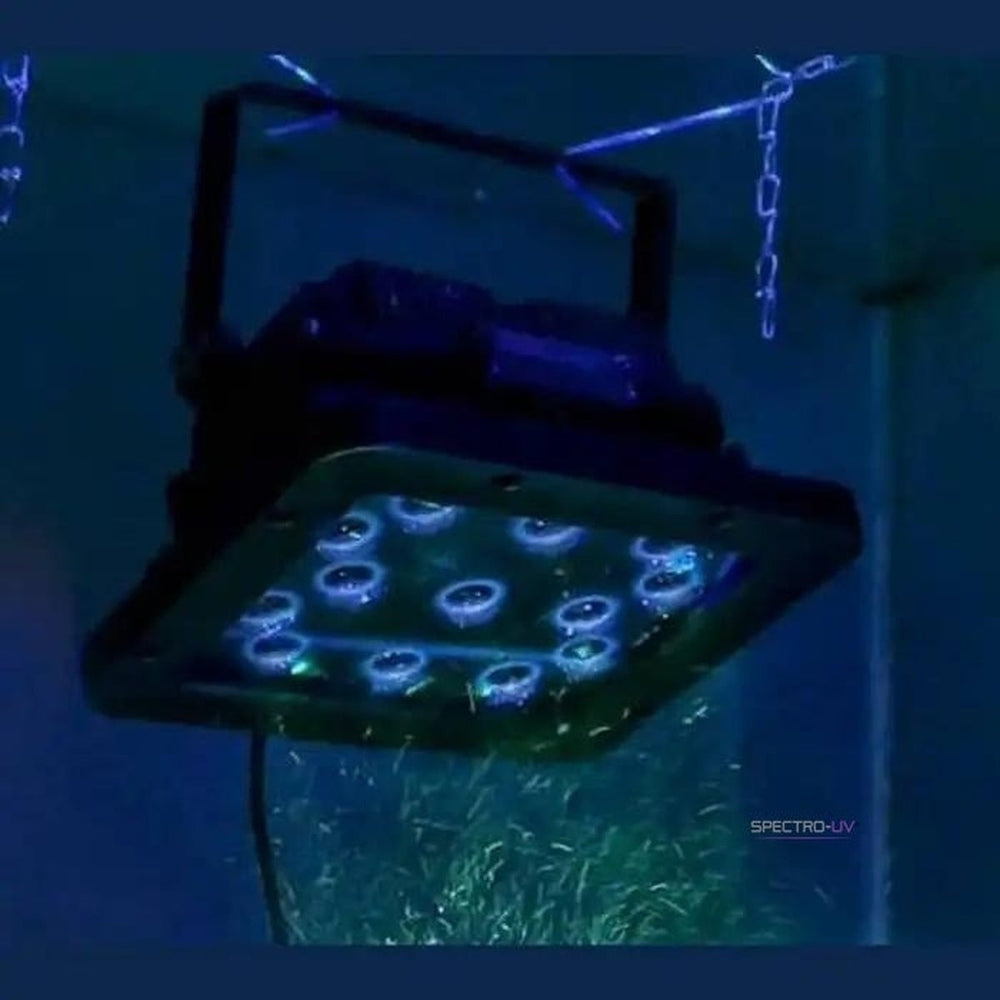

Designed specifically for NDT professionals who require a reliable and rugged overhead UV-A LED lamp for large parts inspection, these IP65 rated panel lamps are dust-tight and protected against jets of water from all angles. Expand coverage by connecting lamps together via gang ports. Fanless cooling means fewer headaches. The only overhead NDT lamp series that has all of these features and comes in a RRES-90061 model.

  • Nominal Steady-State UV-A Intensity at 4700 uW/cm2
  • UV-A Coverage Area: 14.5 x 13 in (37 x 33 cm)
  • Visible Light Measurement: < 1 foot-candles ( <11 lux)
  • Light Source: (13) UV-A (365nm) LEDs
  • Lamp Style: Panel flood lamp
  • Length (L x W X H): 11 x 14 x 9 in. (28 x 36 x 23cm)
  • Weight: 14 lbs. (6.4 kg)
  • Power requirement: AC power (main AC power cord supplied with the unit) Available in 100-120V (50/60Hz), 230V, and 220/240V (50Hz) versions
  • ASTM E3022-18
  • Rolls Royce RRES 90061
  • AIRBUS AITM6-1001 Compliant
  • EN ISO 3059
  • IP65 Rated

Key Features

  • 13 UV-A LEDs providing large area coverage with even illumination
  • ASTM E3022-18 and Rolls-Royce RRES 90061 compliant for nondestructive testing
  • Meets EN ISO:3059 specifications
  • Thermal cut-off circuitry prevents compliance issues when temperature exceeds specifications
  • Integral UV-A pass filters to reduce visible wavelengths
  • Fanless design with state-of-the-art heat sinks for cool operation
  • Long-lasting UV-A lenses that virtually eliminate clouding/solarization
  • Flexible arm for mounting at specific angles
  • Easily mountable for overhead inspection or in-line applications

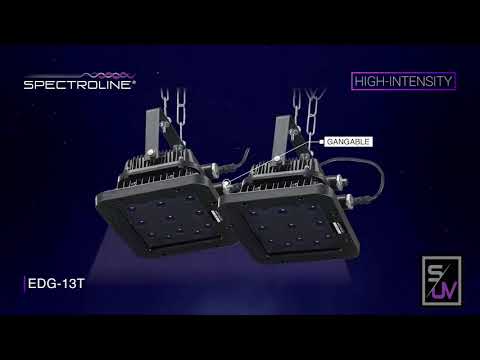

  • Gangable design allowing multiple units to be connected for wider coverage
  • Dust tight and water resistant construction

Benefits

  • High-intensity illumination: 4,700 μW/cm² nominal steady-state UV-A intensity at 15 inches
  • Minimal visible light interference: Less than 1 foot-candle (11 lux)
  • Extensive coverage area: 14.5 x 13 inches (37 x 33 cm) at minimum 1,200 μW/cm²
  • Versatile power options: Available in 100-120V, 230V, and 240V versions
  • Quality assurance: Certificate of Conformance and Validation Report included
  • Reliability: Cool running design with thermal protection
  • Adaptability: Can be positioned at specific angles and mounted in various configurations
  • Expandable system: Multiple units can be connected for larger inspection areas

El EDG-13SBLC es la primera lámpara LED UV-A de 365 nm de techo que garantiza una clasificación IP65, cumplimiento y capacidad de conexión.

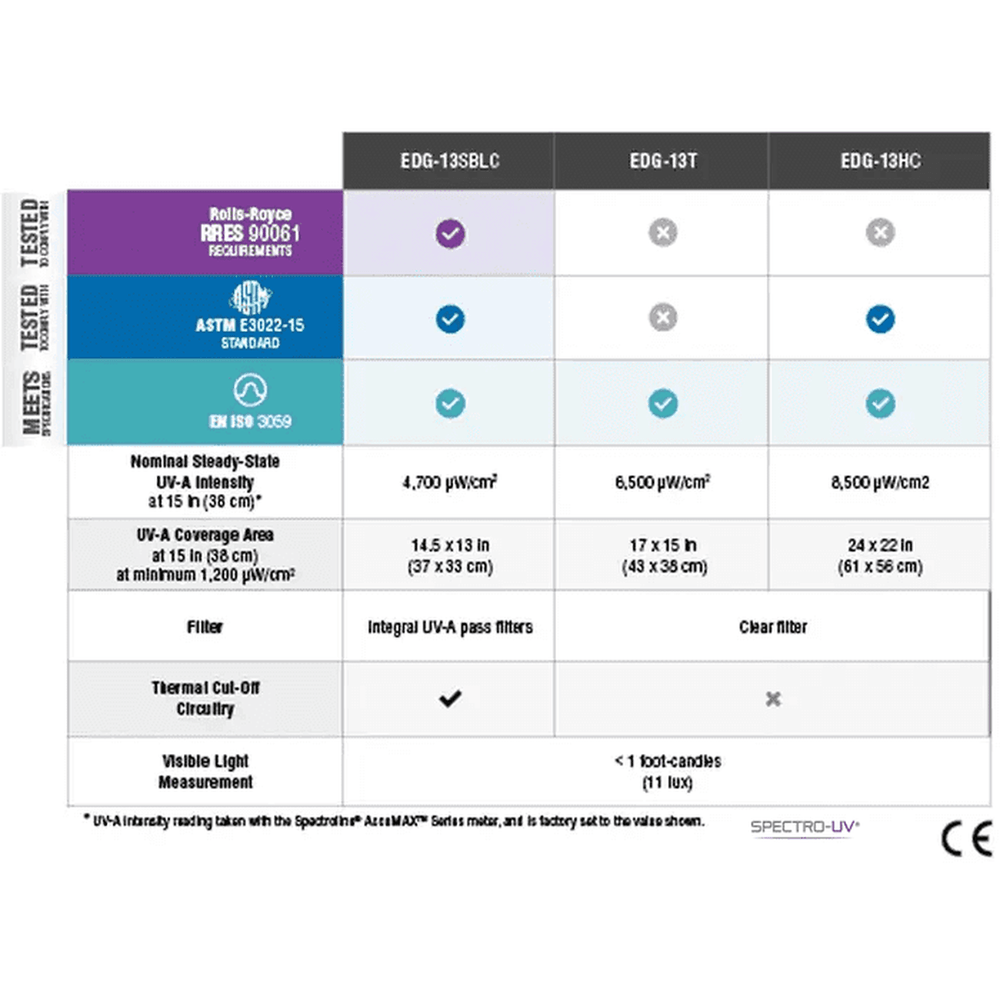

¿Qué diferencia al EDG-13SBLC de nuestros otros modelos?

  • Cumple con las normas ASTM E3022, Rolls Royce RRES 90061 y EN-ISO 3059
  • Filtros de paso UV-A integrales
  • Circuito de corte térmico

    Proyector modelo similar EDG-13T
    Proyector modelo similar EDG-13HC
    Proyector modelo similar PM-16B

      Nominal Steady-State UV-A Intensity at 4700 uW/cm2 uW/cm2
      UV-A Coverage Area: 14.5 x 13 in (37 x 33 cm)
      Modelo y tipo de enchufe: EDG-13SBLC - EE. UU. (Tipo A/B)

      Modelo y tipo de enchufe
