Black Spectro-UV lamp with purple text on a white background

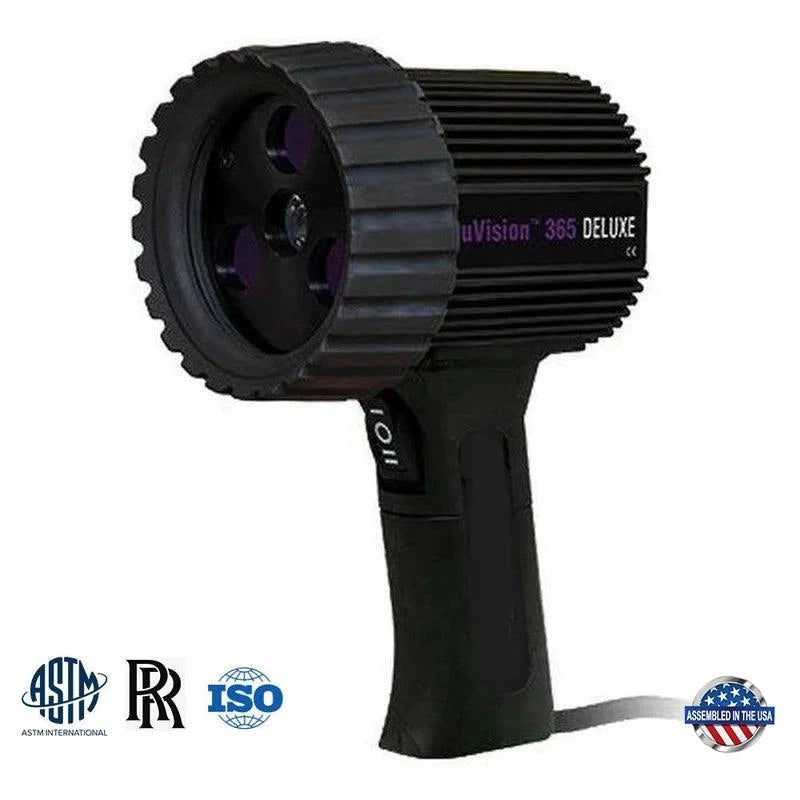

Kit de lámpara de luz negra ultravioleta (UV-A) LED de 365 nm uVision 365 Deluxe Series con filtros de paso UV-A (también disponible en voltajes extranjeros)
Kit de lámpara de luz negra ultravioleta (UV-A) LED de 365 nm uVision 365 Deluxe Series con filtros de paso UV-A (también disponible en voltajes extranjeros)
a picture of the united states flag shaped in the united states with a circle around the words assembled in the usa

UV-365SBLC

Kit de lámpara de luz negra ultravioleta (UV-A) LED de 365 nm uVision 365 Deluxe Series con filtros de paso UV-A (también disponible en voltajes extranjeros)
Precio de oferta$1,878.00
Brochure Intensity profiles User manual Product Comparison

The uVision™ 365 Deluxe is a corded UV-A inspection lamp used to detect cracks, flaws, and defects during fluorescent penetrant and magnetic particle inspection. Aerospace and industrial NDT inspectors use it in fixed inspection stations or wherever AC power is reliably available, relying on its ASTM E3022, ISO 3059, RRES:90061, AIRBUS, and Pratt & Whitney compliance for regulated work.

With superior UV-A intensity and rugged durability, it's designed to thrive in the toughest environments. Whether you're identifying hidden flaws or scanning for leaks, this inspection lamp delivers precise, reliable results.

Problems Solved:

  • Multi-Standard Compliance Headaches: Eliminates the need to purchase different lamps for different projects or clients. Meets ASTM E3022, ISO 3059, RRES:90061, AIRBUS AITM6, and Pratt & Whitney standards.
  • Contamination from Fan Debris: Fanless mechanical cooling prevents airborne particles from contaminating inspection surfaces during magnetic particle or penetrant testing.
  • Inconsistent UV Intensity: Thermal cut-off circuitry and microprocessor control maintain steady-state 4,500 μW/cm² at 15 inches, ensuring reliable flaw detection.
  • Limited Coverage Area: 6-inch diameter coverage at minimum 1,200 μW/cm² means fewer repositions and faster inspections.
  • Poor Working Conditions: Built-in white LED (400 foot-candles) illuminates work areas for safe surface preparation and documentation.

Ideal For: Compliance-critical applications requiring portability and reliability - aerospace inspections, pressure vessel testing, structural weld examination.

Available with: 8-foot or optional 20-foot cord |Multiple international adapters

  • UV-A Intensity Range: 4,500µW/cm² at 15" (38cm)
  • UV-A Coverage Area: 6 in (15 cm)
  • Visible Light Measurement: < 1 foot-candles (< 11 lux)
  • Power Requirements: 100-120VAC/12VDC (also available in 230V & 240V)

  • ASTM E3022-18
  • Rolls Royce RRES 90061
  • AIRBUS AITM6-1001 Compliant
  • Pratt & Whitney Compliant
  • EN ISO 3059
  • IP65 Rated
  • High-Performance UV-A LEDs: Features 3 UV-A LEDs for wide coverage and reduced solarization
  • Premium Protection: IP65-rated dust-tight and water-resistant construction for challenging environments
  • Thermal Management: Cool running, fanless design with advanced heat sinks maintains optimal temperature, reducing maintenance and repair needs
  • Superior Optical Performance: UV-A pass & Borofloat filters ensure consistent, high-quality UV output and protection from degradation over time
  • Safety Assurance: Thermal cut-off circuitry prevents overheating during extended use
  • Complete Certification: ASTM E3022 Certified, meets EN ISO 3059 standards, and Rolls-Royce 90061 certified for aerospace industry inspections
  • Precision Engineering: Integral UV-A pass filters ensure accurate fluorescent inspection results
  • uVision™ 365 LED 365nm UV-A lamp
  • In-line AC Power Supply
  • UV-absorbing spectacles
  • Padded protective case

Las lámparas de inspección UV-365SBLC UV-A, livianas, con clasificación IP 65 de 365 nm, uVision ™ serie 365, se pueden usar en pruebas no destructivas (NDT), evaluaciones no destructivas (NDE), análisis forenses e inspecciones de seguridad. La lámpara de inspección de luz negra fluorescente ultravioleta multiLED uVision 365 es la mejor lámpara de mano compacta disponible. Para inspecciones fluorescentes, en ambientes interiores y exteriores hostiles, la serie uVision 365 está disponible en doce modelos para satisfacer sus necesidades específicas, con cinco niveles de intensidad UV-A diferentes. Es liviano y resistente, con clasificación IP 65, hermético al polvo y resistente al agua. Las lámparas de la serie uVision 365 ofrecen un haz UV-A brillante y uniforme para localizar indicaciones fluorescentes. Se incluye un control sencillo con un interruptor basculante de tres vías montado en la empuñadura y un LED UV-A de luz blanca ajustable adicional para iluminar áreas oscuras y escanear defectos de la superficie. La serie uVision 365 establece el nuevo estándar en inspección fluorescente.

¿Qué diferencia al UV-365SBLC de nuestros otros modelos?

  • Certificado ASTM E3022
  • Cumple con las normas EN ISO 3059
  • Certificado Rolls-Royce 90061
  • Circuito de corte térmico
  • Filtros de paso UV-A integrales

Un modelo similar UV-365ZSBLC tiene una batería de iones de litio en el mango
Un modelo similar UV-365MSBLC tiene una batería externa

Nominal Steady-State UV-A Intensity at 4,500 µW/cm2 uW/cm2
UV-A Coverage Area: 6 in (15 cm) Ø
Modelo y tipo de enchufe: UV-365SBLC - EE. UU. (Tipo A/B)

Modelo y tipo de enchufe
