AccuMAX Radiometer / Photometer Kit (XRP-3000)
The AccuMax ™ XRP-3000 digital Radiometer / Photometer is a compact, lightweight, and battery-operated UV Meter for convenient use in the factory, field, or any other location where accurate light measurements are essential. This Radiometer / Photometer measures both ultraviolet and visible light. Complies with ASTM specifications for MPI and FPI. Specially engineered for NDT applications.

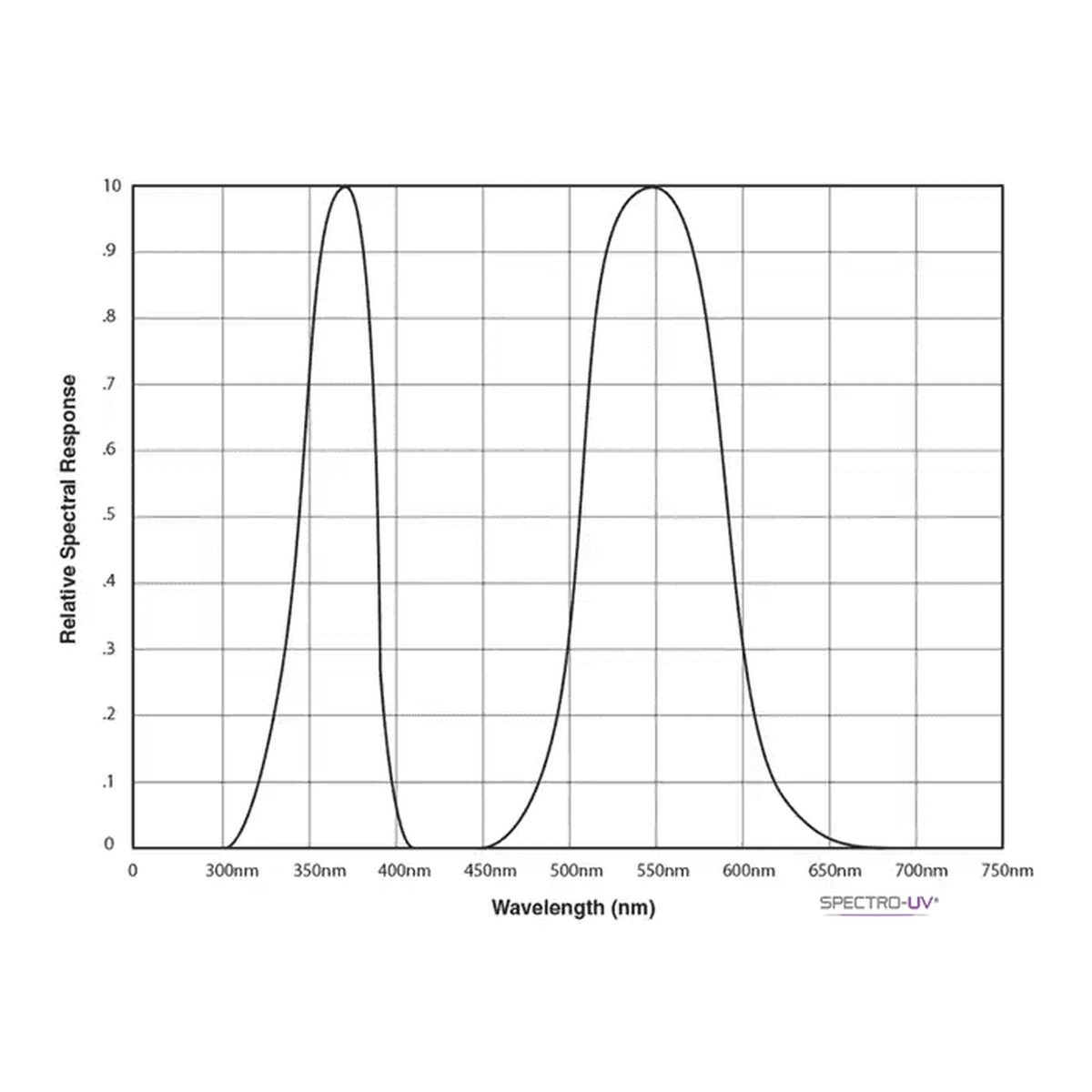

DescriptionThe AccuMAX XRP-3000A advanced digital Radiometer / Photometer features a microprocessor controlled readout unit with a dual-sensor detector to accurately measure both ultraviolet and visible light. It is specially engineered for nondestructive testing (NDT) applications. The UV-A/VIS sensor connects directly to the readout unit or via a USB cable with a water-resistant sensor adapter. A visible luminance sensor is available as an optional accessory. The XRP-3000A Radiometer / Photometer provides black light (long wave UV) readings from 0-100 mW/cm2, and visible light readings from 0-5,300 lux, (0-500 fc). See Table 2-2 for specifications. The XRP-3000A has an overall accuracy of better than ±5% with reference to NIST standards and conforms to black light and visible light MIL and ASTM specs for FPI and MPI in NDT applications The Radiometer / Photometer sensors are loaded with low electrical impedance, making their linearity vastly superior to that of any other comparably priced Radiometers. The sensors are provided with a special diffuser-sensor window that helps prevent filter degradation and ensures accurate lambertian or cosine response. The XR-1000 Radiometer / Photometer Readout Unit has a maximum 4-digit autoranging, monochrome LCD display and is protected by a rugged rubber boot. Additional features of the electronics include excellent temperature coefficient and over-ranging characteristics and built-in autozeroing. The XRP-3000A Radiometer / Photometer is compact, lightweight and battery operated for convenient use in the factory, field or any other location where measurements need to be taken. A slide-out panel allows easy replacement of the unit's 9-volt batteries.
What’s includedComes complete with Readout Unit (XR-1000), Dual UV-A/Visible Sensor Detector (XDS-1000) , Water-resistant USB cable with adapter (XCB-100) , Rubber boot (XRB-100), Carrying case (XCC-100)
- Microprocessor-controlled Radiometer / Photometer readout unit with dual-wavelength sensor detector
- Superior bandpass interference filter
- Choice of direct or USB connection between sensor detector and readout unit
- Excellent cosine response
- User-selectable, multilingual display settings. Choose from English, French, German, and Spanish
- Large, easy-to-read LCD screen
- Sealed sensor housing and USB connection with water-resistant adapter
