Black Spectro-UV lamp with purple text on a white background
Black uVision blacklight lamp kit with a cylindrical shape and a black handle, displaying the uVision brand name on the side.
uVision 365 Deluxe Series LED 365nm Ultraviolet UV-A Blacklight Lamp Kit with UV-A Pass Filters and Battery Pack

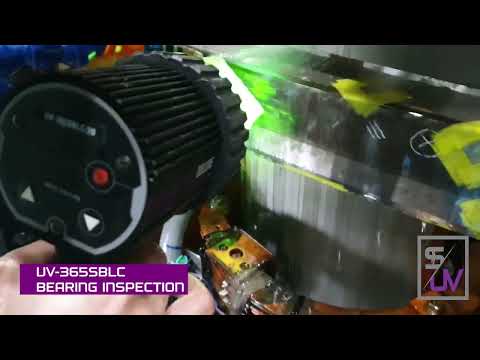

Short video showing the Spectro-UV UVision UV-A blacklight handheld inspection lamp kit in use for an NDT UV-A fluorescent inspection
a picture of the united states flag shaped in the united states with a circle around the words assembled in the usa

UV-365MHC

uVision 365 Deluxe Series LED 365 nm Ultraviolett (UV-A) Schwarzlichtlampen-Set mit UV-A-Passfiltern und Akkupack (auch in ausländischen Spannungen erhältlich)
Angebot$2,665.00
Brochure Intensity profiles User manual Product Comparison Material Safety Data Sheet(MSDS)

The uVision™ 365 Deluxe M-Model is a cordless, battery-powered UV-A inspection lamp used to detect cracks, flaws, and contamination during fluorescent penetrant and magnetic particle inspection. NDT technicians, forensic investigators, and security inspectors use it for field, remote, and outdoor jobs where a power outlet isn't available, running up to 7 hours (MHC) with a 4-hour recharge time.

With superior UV-A intensity and rugged durability, it's designed to thrive in the toughest environments. Whether you're identifying hidden flaws or scanning for leaks, this inspection lamp delivers precise, reliable results.

Problems Solved:

  • Cordless High-Intensity Inspection: Combines 6,000 μW/cm² output with 7-hour battery operation for demanding field work.
  • Large Cordless Coverage: 7-inch diameter at minimum 1,200 μW/cm² provides extensive wireless inspection capability.
  • ASTM E3022 Compliance Mobility: Full compliance without power cord restrictions for critical aerospace and industrial field inspections.



Ideal For: Mobile aerospace maintenance, field service operations, and remote critical component inspections requiring both high intensity and portability.

Includes: Li-Ion battery pack, AC power supply, multiple international adapters

  • UV-A Intensity Range: 6,000µW/cm² at 15" (38cm)
  • UV-A Coverage Area: 7 in (17.8 cm)
  • Visible Light Measurement: < 1 foot-candles (< 11 lux)
  • Battery Life: Run Time: 7 hours
  • Charge Time: 4 hours
  • Power Requirements: 100-120VAC
  • Battery Pack: 14.8V, Li-Ion (rechargeable)
  • ASTM E3022-18
  • EN ISO 3059
  • AIRBUS AITM6-1001 Compliant
  • IP65 Rated
  • High-Performance UV-A LEDs: Features 3 UV-A LEDs for wide coverage and reduced solarization
  • Premium Protection: IP65-rated dust-tight and water-resistant construction for challenging environments
  • Thermal Management: Cool running, fanless design with advanced heat sinks maintains optimal temperature, reducing maintenance and repair needs
  • Superior Optical Performance: UV-A pass & Borofloat filters ensure consistent, high-quality UV output and protection from degradation over time
  • Safety Assurance: Thermal cut-off circuitry prevents overheating during extended use
  • Complete Certification: ASTM E3022 Certified and meets EN ISO 3059 standards.
  • Precision Engineering: Integral UV-A pass filters ensure accurate fluorescent inspection results
  • Three-Way Control Switch: Sealed, grip-mounted rocker switch provides instant selection: white light for preparation, off position, or UV-A for inspection - all within thumb reach
  • uVision™ 365 LED 365nm UV-A lamp
  • In-line AC Power Supply
  • UV-absorbing spectacles
  • Battery pack with 14.8V rechargeable Li-Ion battery
  • Padded protective case

Die leichten, IP 65-zertifizierten 365 nm UV-A-Inspektionslampen der uVision™ 365-Serie, Modell UV-365MHC, können bei zerstörungsfreien Prüfungen (NDT), zerstörungsfreien Beurteilungen (NDE), in der Forensik und bei Sicherheitsinspektionen verwendet werden. Die uVision 365 Multi-LED-Ultraviolett-Schwarzlicht-Inspektionslampe ist die beste kompakte Handlampe auf dem Markt. Für Fluoreszenzinspektionen in rauen Innen- und Außenumgebungen ist die uVision 365-Serie in zwölf Modellen erhältlich, um Ihren speziellen Anforderungen gerecht zu werden – mit fünf verschiedenen UV-A-Intensitätsstufen. Sie sind leicht und robust, IP 65-zertifiziert sowie staubdicht und wasserdicht. Die Lampen der uVision 365-Serie bieten einen hellen, gleichmäßigen UV-A-Strahl zum Auffinden von Fluoreszenzanzeigen. Einfache Steuerung mit einem am Griff angebrachten Dreiwege-Wippschalter und einer zusätzlichen einstellbaren Weißlicht-UV-A-LED zum Beleuchten dunkler Bereiche und Scannen von Oberflächenfehlern. Die uVision 365-Serie setzt den neuen Standard bei Fluoreszenzinspektionen.

Was unterscheidet den UV-365MHC von unseren anderen Modellen?

Nominal Steady-State UV-A Intensity at 6,000 μW/cm2 uW/cm2
UV-A Coverage Area: 7 in (17.8 cm) Ø
Modell und Steckertyp: UV-365MHC – USA (Typ A/B)

Modell und Steckertyp
