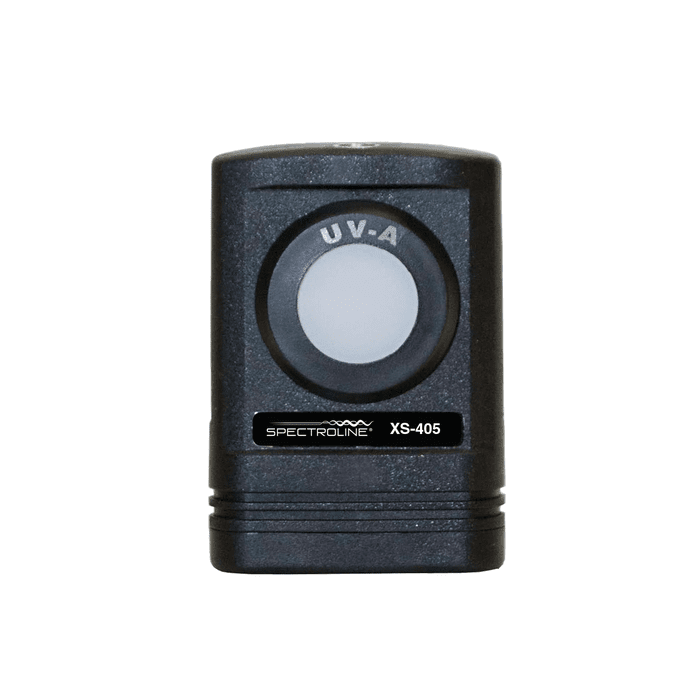

AccuMAX Sensor Detector 395 - 415nm (XS-405)
XS-450 measuring 395 to 415nm is the perfect accessory for the AccuMAX ™ Series Radiometer/ Photometer models XR-1000, XRP-3000 or XRP-3000A. Ideal for technicians performing radiographic examinations. AccuMAX sensor detectors are designed to meet virtually any laboratory, life science or specialty UV application. Also available in 254 to 555nm Wavelengths.
DescriptionAccuMAX sensor detectors are designed to meet virtually any laboratory, life science or specialty UV application. These detectors feature water-resistant, sealed sensor housings, superior bandpass interference filters and excellent cosine response. Single-wavelength detectors are available in both standard range (XS-series), ideal for checking the intensity of fluorescent UV tubes and HID UV bulbs, and extended range (XTS-series), useful for measuring high-intensity light sources used in curing and photoactivation applications. Also available in 254 to 555nm Wavelengths. In addition, a dual-wavelength UV/VIS sensor detector (XDS-1000) is available to measure both UV-A and visible light, useful for industrial inspections. All sensors can easily be connected to the readout unit either directly or with a standard USB cable. A special 5 foot (1.5 m) USB cable with water resistant adapter (XCB-100) is available as an accessory.
What’s includedComes complete with one AccuMAX Sensor Detector 395 - 415nm (XS-405).
|Model||Sensor||Spectral Range||Range In Units|
|XS-254||UV-C||230 - 280nm||0 - 100 mW/cm2|
|XS-300||UV-B||280 - 320nm||0 - 100mW/CM2|
|XS-365||UV-A||320 - 420nm||0 - 100mW/cm2|
|XS-405||UV-V||395 - 415nm||0 - 100mW/cm2|
|XS-450||Bilirubin||420 - 480nm||0 - 100mW/cm2|
|XS-555/I||Visible illuminance||460 - 675nm||0 - 5,300 lux (0 - 500 fc)|
|XS-555/L||Visible luminance||555nm||0 - 1,000,000 cd/m² 0 - 90,000 cd/ft² 0 - 285,000 fL|
|XDS-1000||UV-A / Visible illuminance||460 - 675nm||0 - 5,300 lux (0 - 500 fc)|
