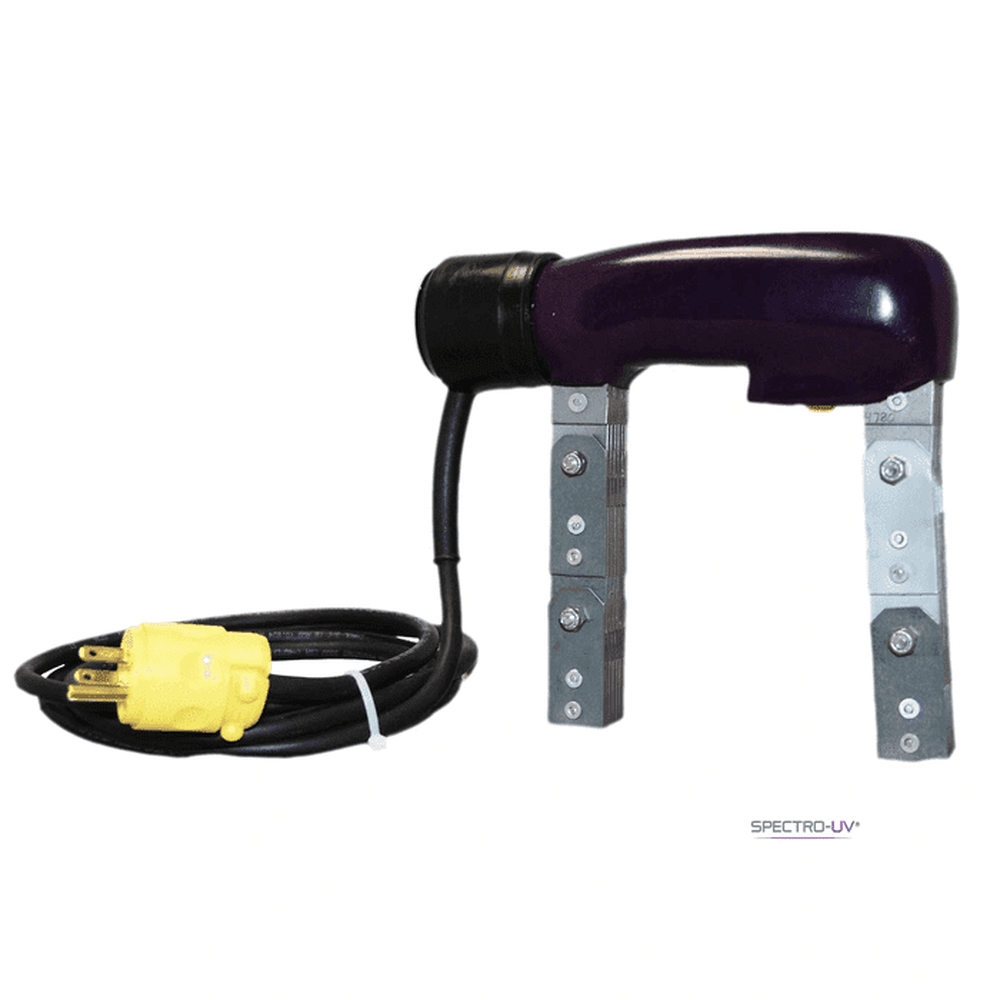

Magnetic Particle Inspection AC Yoke (YK-1)
Model YK-1 Magnetic Particle Inspection AC Yoke produces a powerful AC magnetic field for the detection of surface indications and flaws during the Magnetic Particle Testing (MPT) Process. YK-1 Magnetic Particle Inspection AC Yoke is a ergonomically designed and for use in the most extreme environments. YK-1 Magnetic Particle Inspection AC Yoke is lightweight, portable & compact. YK-1 Magnetic Particle Inspection AC Yoke exceeds ASTM and ASME specifications. Operator inspection is fast and easy and allows for maximizing magnetic particle mobility. Model YK-1 is an essential accessory for all NDT and UV work. Pairs perfectly with PG-1 Pie Gauge. Also available from Spectro-UV is Circle Systems Circle Safe Mi-Glow 778, Mi-Glow 800, and Mi-Glow 834.
Couldn't load pickup availability
Description
Spectro-UV’s lightweight, portable & compact Magnetic Particle Inspection AC Yoke exceeds ASTM and ASME specifications. Designed to perform Magnetic Particle Testing (MPT) in the most extreme environments found on earth. Operator inspection is fast and easy with YK-1 Magnetic Particle Inspection AC Yoke and allows for maximizing magnetic particle mobility.What’s included

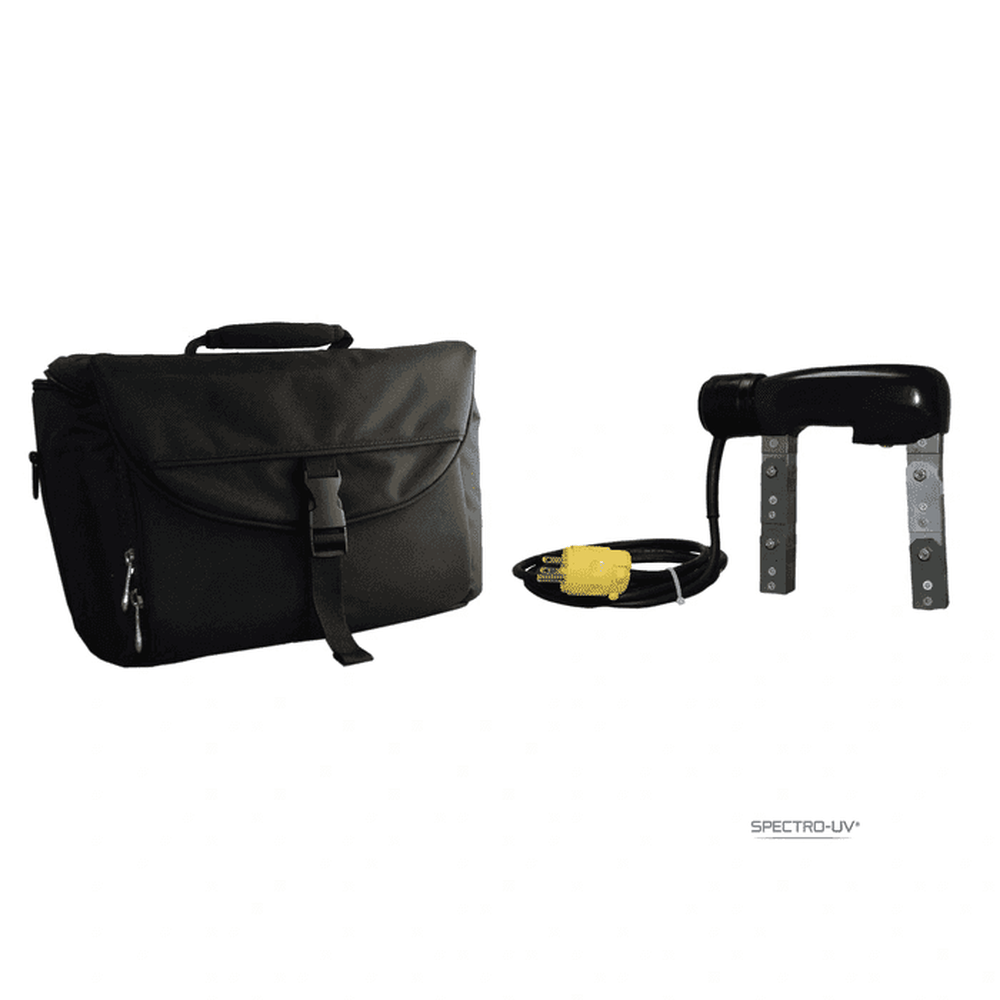

Comes complete with YK-1 Magnetic Particle Inspection AC Yoke with cord set and soft carrying case.
Key Features
- Magnetic AC Yoke Voltage: 115 VAC Nominal
- Magnetic AC Yoke Current: 4.0 Amps
- Magnetic AC Yoke Frequency: 60 Hz
- Yoke Cord Length: 8 Feet
- Yoke Lift: 10 Pounds (4.6 kg) minimum
- Magnetic Yoke Pole Spacing (Capacity): 0 to 11” (28 cm)
- Yoke Width Between Legs: 4.4” (11.17 cm)
- Yoke Finish: Black Urethane Rubber
- Yoke Weight: 7.2 Pounds (3.3 kg)
